>> E << Camshaft Sprocket Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

Hold the camshaft sprocket with special tools MB990767 and MD998719 in the same manner as removal.

Fig 1: Holding Camshaft Sprocket With Special Tools
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten the camshaft sprocket mounting bolts to the specified torque.
1. Tightening torque: 89 +/- 9 N.m (65 +/- 7 ft-lb)

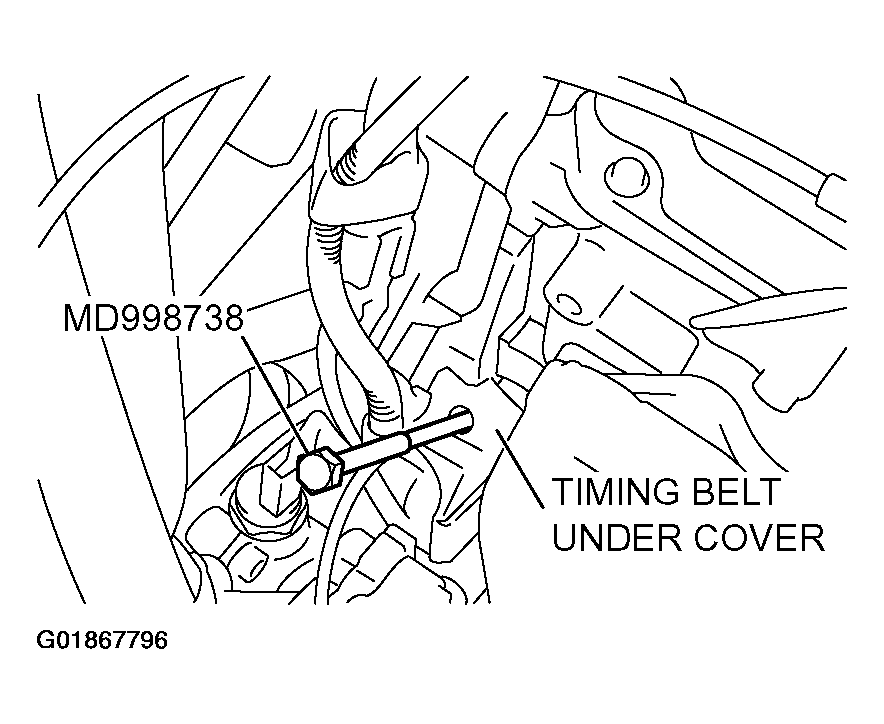

Remove special tool MD998738, then assemble the timing belt under cover rubber plug.

Fig 2: Assembling Timing Belt Under Cover Rubber Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
