<< A >> Drive Belt Removal

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

The following operations will be needed due to the serpentine drive system with the drive belt auto-tensioner.

Securely insert the spindle handle or ratchet handle with a 12.7mm (1/2-inch) insertion angle into the jig hole of the auto-tensioner, and turn the auto-tensioner counterclockwise until it hits the stopper.
CAUTION: To reuse the drive belt, draw an arrow indicating the rotating direction (to the right) on the back of the belt using chalk, etc.

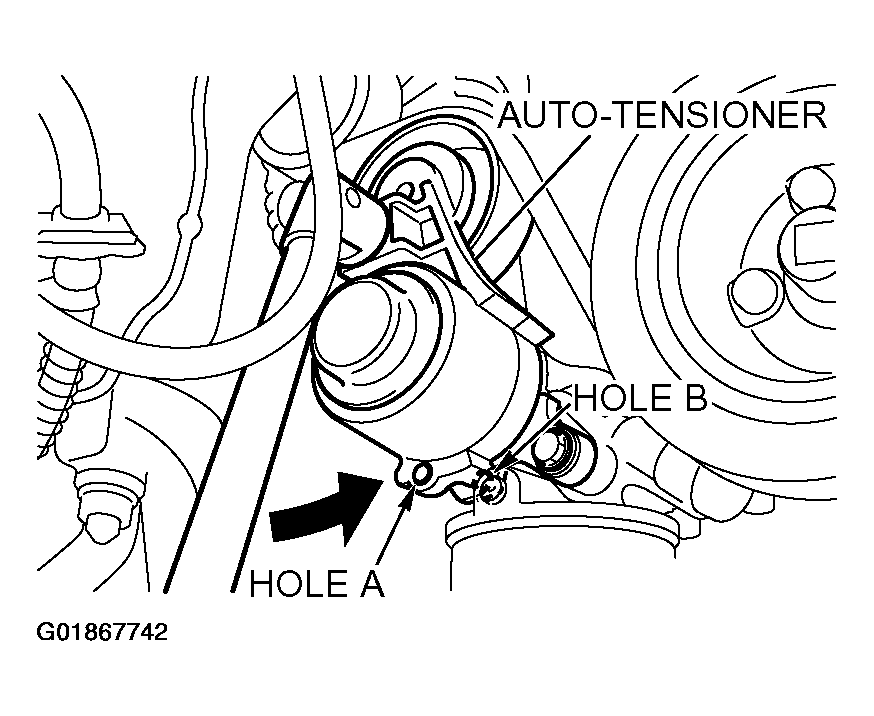

Fig 1: Turning Auto-Tensioner Counterclockwise
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align hole A with hole B, insert an L-shaped hexagon wrench, etc. to fix and then remove the drive belt.

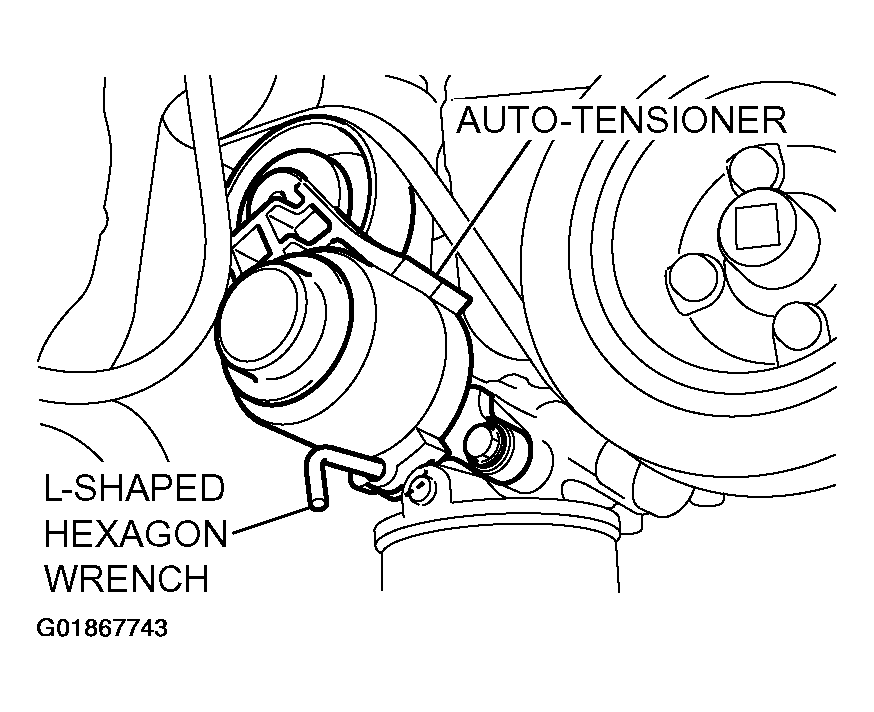

Fig 2: Aligning Hole A With Hole B, Inserting An L-Shaped Hexagon Wrench
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
