>> D << Crankshaft Balancer Shaft Drive Sprocket Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Degrease and clean the crankshaft balancer shaft drive sprocket.
  2. Degrease and clean the crankshaft balancer shaft drive sprocket installation side of the crankshaft.
  3. Install the crankshaft balancer shaft drive sprocket in the direction shown in the illustration.

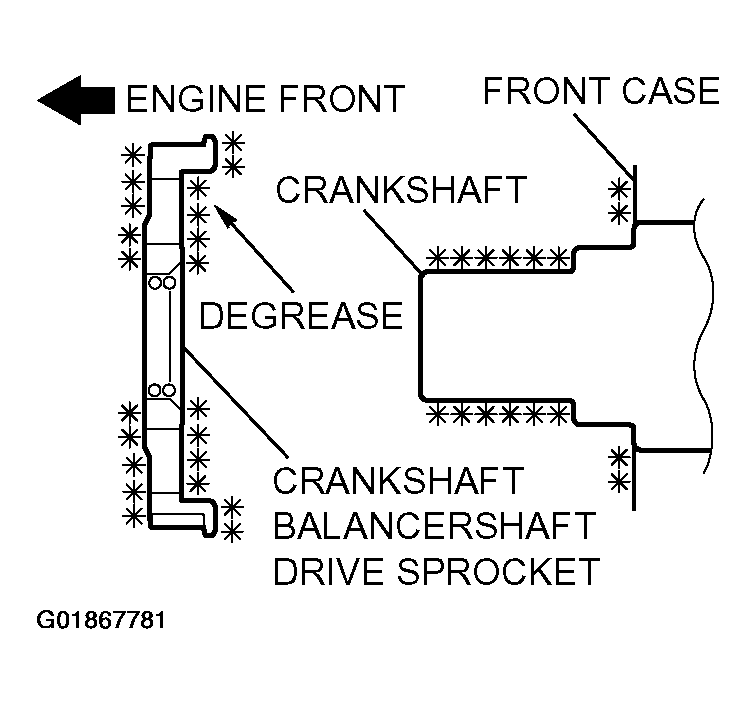

    Fig 1: Installing Crankshaft Balancer Shaft Drive Sprocket
    G01867781Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
