>> C << Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a small amount of engine oil to the entire inner diameter of the oil seal lip.
  2. Apply a small amount of engine oil to the outer diameter of special tool MD998285 and install it to the crankshaft.
  3. Use special tool MD998375 to press-fit the oil seal.

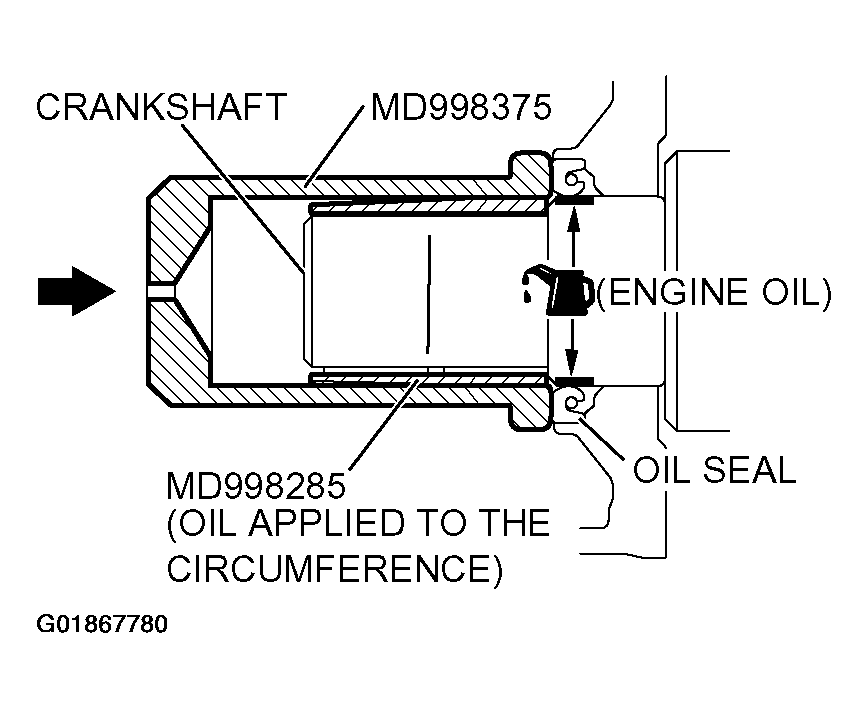

    Fig 1: Using Special Tool MD998285 To Press-Fit Oil Seal
    G01867780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
