<< C >> Rocker Arm, Shaft, Lash Adjuster And Spring Assembly/Rocker Arm, Shaft And Lash Adjuster Assembly Removal
WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Never disassemble the rocker arm, shaft and lash adjuster assembly.

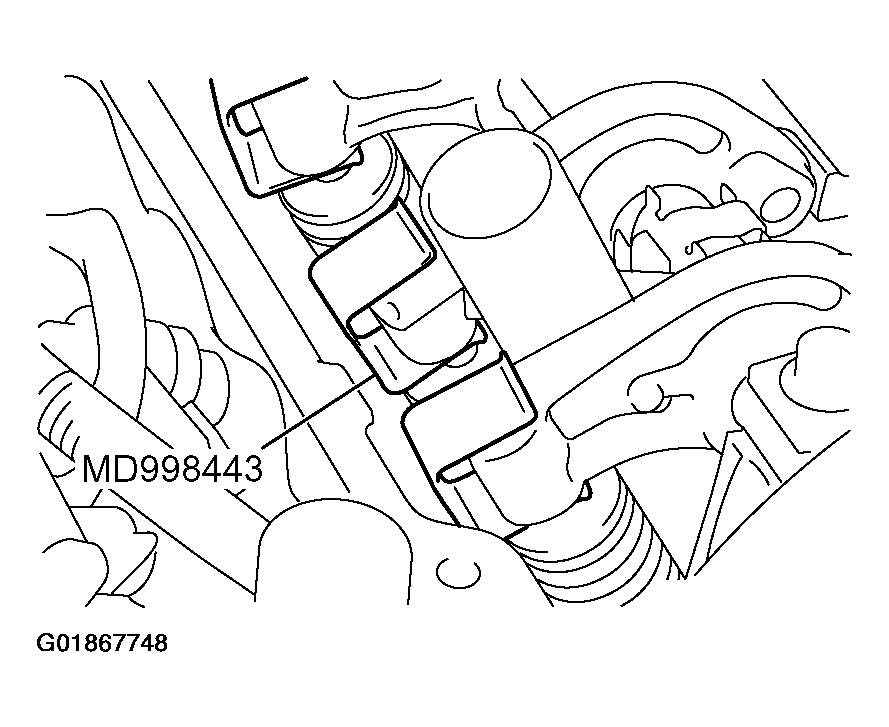

Before rocker arm, shaft, lash adjuster and spring assembly removal, install special tool MD998443 as shown in the illustration so that the lash adjusters will not fall out.
