>> E << Rocker Arm, Shaft And Lash Adjuster Assembly Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rocker arm, shaft and lash adjuster assembly.
  2. Tighten the mounting bolts to the specified torque.
    1. Tightening torque: 31 +/- 3 N.m (23 +/- 2 ft-lb)
  3. Remove special tool MB998443.

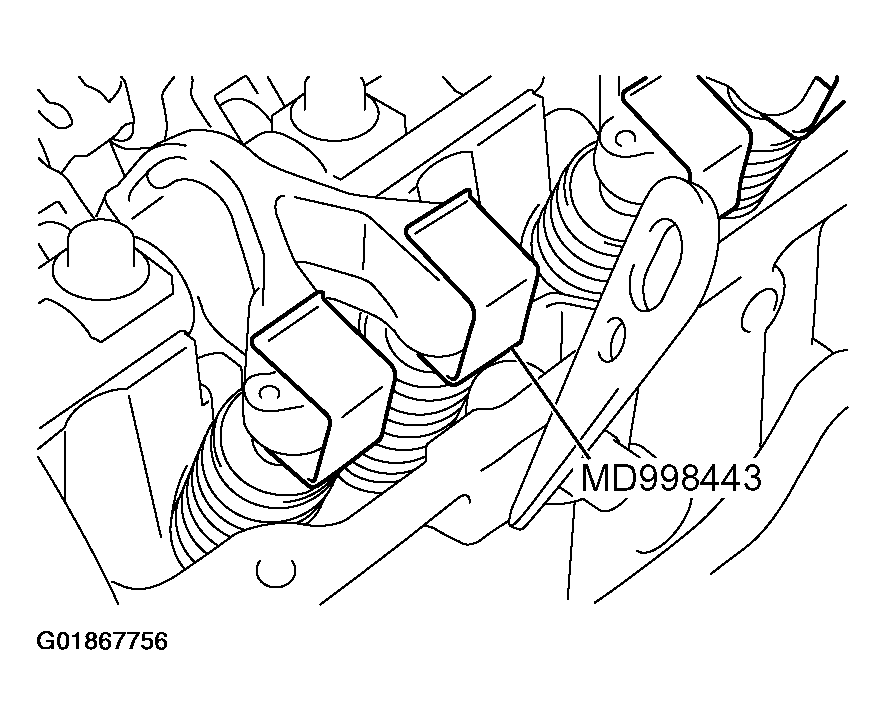

    Fig 1: Removing Special Tool MB998443
    G01867756Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Check that notches in the each rocker shaft are facing the direction shown in the illustration.
    Fig 2: Checking Notches In Each Rocker Shaft
    G01867757Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
