>> D << Rocker Arm, Shaft And Lash Adjuster Assembly/Rocker Shaft Springs/Rocker Arm, Shaft, Lash Adjuster And Spring Assembly Installation

WARNING: This page is about a different car, the 2003 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that all rocker arms do not press against the valve, then pre-tighten the rocker arm, shaft and lash adjuster assembly with the assembling bolt.
  2. Install the rocker shaft spring so that it is at a right angle against the spark plug guide.
  3. Tighten the mounting bolts to the specified torque.
    1. Tightening torque: 31 +/- 3 N.m (23 +/- 2 ft-lb)

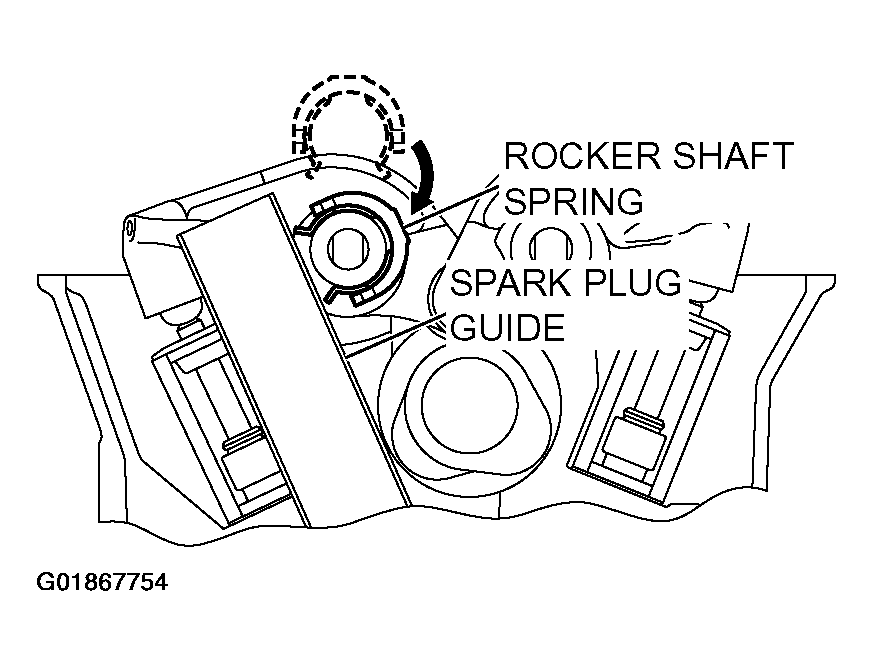

    Fig 1: Installing Rocker Shaft Spring At Right Angle Against Spark Plug Guide
    G01867754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Remove special tool MB998443.

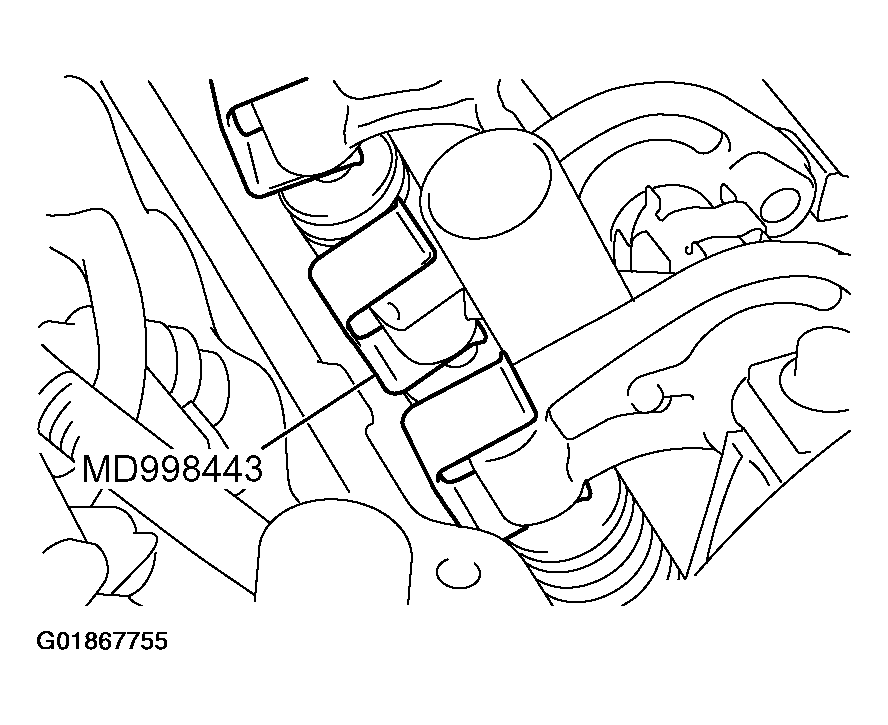

    Fig 2: Removing Special Tool MB998443
    G01867755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
