Heater Control Lever Assembly Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara and 2002 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove mode control switch. See HEATER MODE CONTROL SWITCH REMOVAL & INSTALLATION .
Remove glove box.
Disconnect control cables (3) from blower motor unit (2) and heater unit (1).

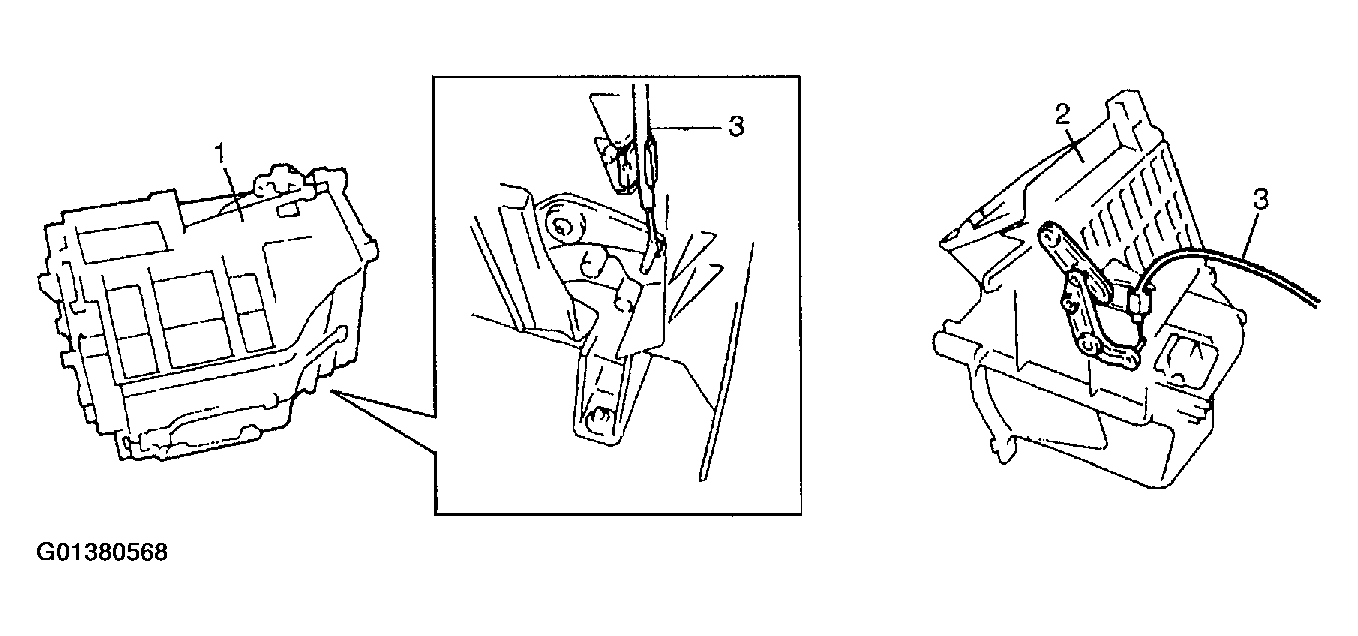

Fig 1: Disconnecting Control Cables From Blower Motor Unit And Heater Unit
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect heater blower motor switch (1) connector at coupler.
Remove heater control lever assembly (2).

Fig 2: Removing Heater Control Lever Assembly
Courtesy of SUZUKI OF AMERICA CORP.
