Heater Control Cables Removal & Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki Vitara and 2002 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal procedure and fix each cable with clamp in position. See HEATER CONTROL LEVER ASSEMBLY REMOVAL & INSTALLATION .

After installing control cables be sure that control levers move smoothly and stop at proper position.
Move control lever (1) to FRESH position (2), then push lever fully in arrow direction (4) and fix cable (3) with clamp in position as shown in the figure.

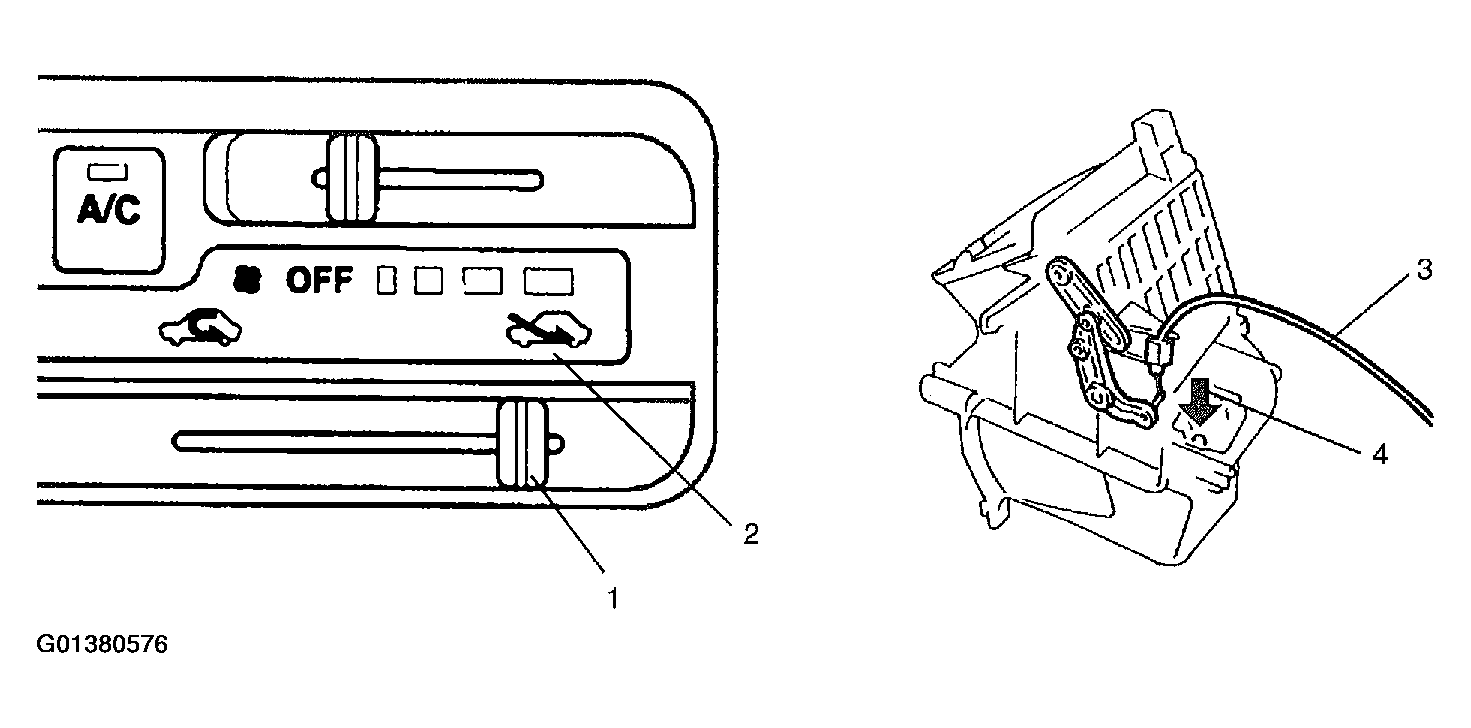

Fig 1: Moving Control Lever To Fresh Position, Then Pushing Lever Fully In Arrow Direction And Fix Cable With Clamp In Position (As Shown)
Courtesy of SUZUKI OF AMERICA CORP.
