Heater Blower Motor Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara and 2002 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Disable air bag system, if equipped. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove ECM with bracket from blower motor unit.
Disconnect harness clamps from dash panel.
Loosen 3 nuts (1) fastening blower unit (2).

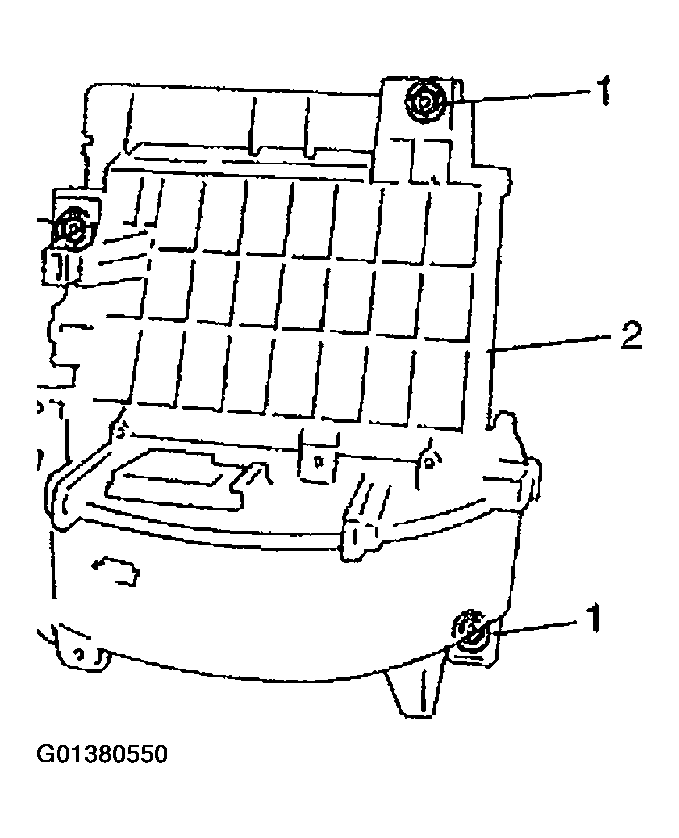

Fig 1: Loosening Blower Unit Fastener Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect blower motor lead wire at coupler (2).
Remove blower motor (3) from blower unit (1).

Fig 2: Removing Blower Motor From Blower Unit
Courtesy of SUZUKI OF AMERICA CORP.
