Section 149 (Heater & Ventilation)
>>
Diagnostic Information & Procedures
>>
Heater & Ventilation Symptom Diagnosis
Heater & Ventilation Symptom Diagnosis
WARNING:
This page is about a different car, the 2003 Suzuki Vitara and 2002 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

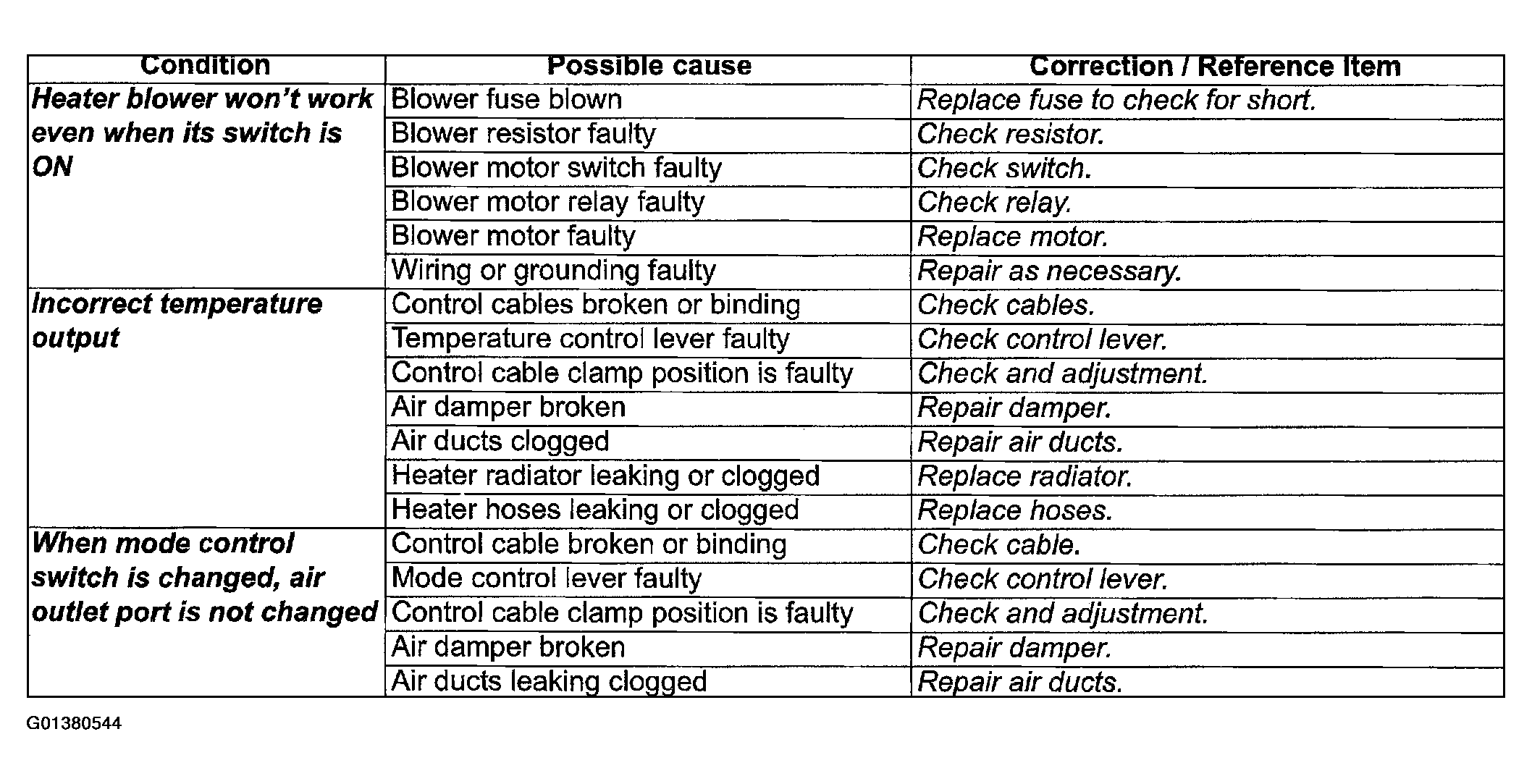

Fig 1: Heater & Ventilation Symptom Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
