Rear Door Glass Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove inside handle bezel (1).

Fig 1: Removing Inside Handle Bezel
Courtesy of SUZUKI OF AMERICA CORP.
Remove inside lock knob and door inside pull handle case fitting screw.
Remove window regulator handle (if equipped). To remove regulator handle, pull off snap ring by using a cloth as shown in the figure.

Fig 2: Removing Window Regulator Handle (If Equipped)
Courtesy of SUZUKI OF AMERICA CORP.

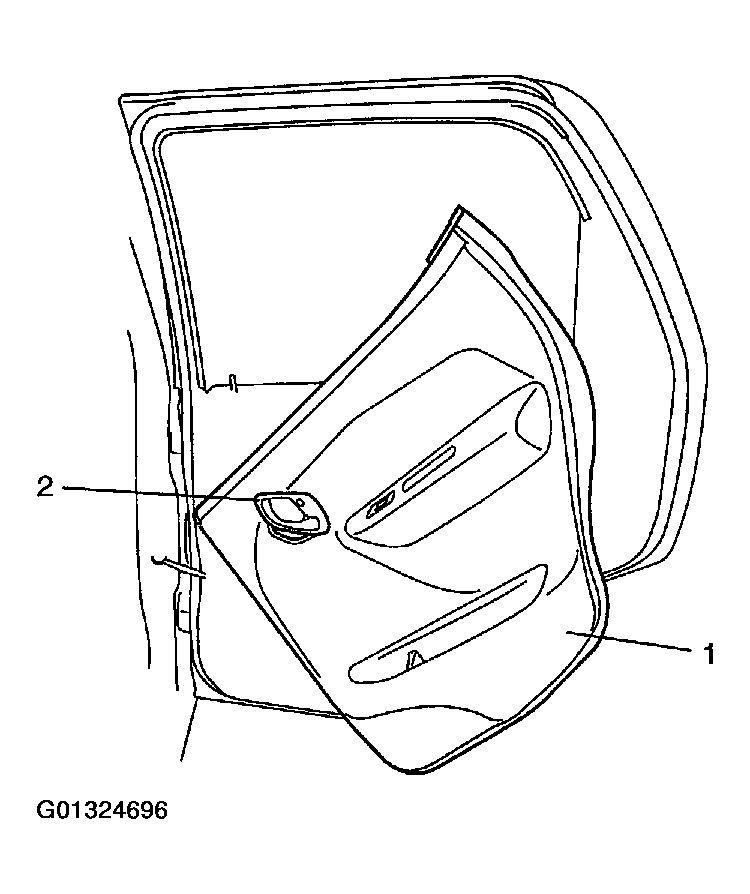

Remove door trim (1) with inside weather-strip. With inside handle bezel (2) tilted as shown in the figure, turn door trim (1) 90° counterclockwise to remove it. And disconnect power window switch lead wire.

Fig 3: Removing Door Trim
Courtesy of SUZUKI OF AMERICA CORP.
Remove door sealing cover.
Remove door outer weather-strip (1).
CAUTION: Using a tape-wrapped putty knife (or tape-wrapped screwdriver), pry off weather- strip. Use of an unwrapped tool will cause damage to painting.

Fig 4: Removing Door Outer Weather-Strip
Courtesy of SUZUKI OF AMERICA CORP.

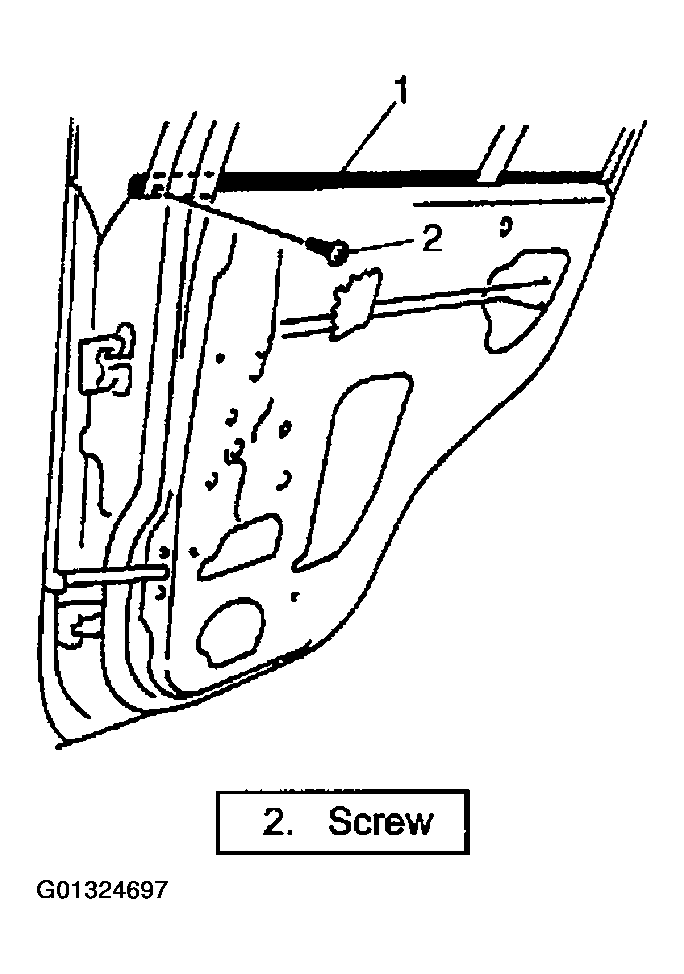

Remove glass fitting screws (2). Then down door glass (1).

Fig 5: Removing Glass Fitting Screws
Courtesy of SUZUKI OF AMERICA CORP.
Detach rear part of glass run (1) from center sash (2).

Fig 6: Detaching Rear Part Of Glass Run
Courtesy of SUZUKI OF AMERICA CORP.
Remove door center sash (3) (by removing 2 screws (1) with door glass lowered all the way down).

Fig 7: Removing Door Center Sash
Courtesy of SUZUKI OF AMERICA CORP.
When remov ing partition glass (2), slide to front to remove it.
Take out glass.
