Oil Pan and Oil Pump Strainer Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Install new O-ring (1) to lower crankcase as shown in the figure.
Install two new O-rings to oil pump strainer.

Fig 1: Installing O-rings
Courtesy of SUZUKI OF AMERICA CORP.

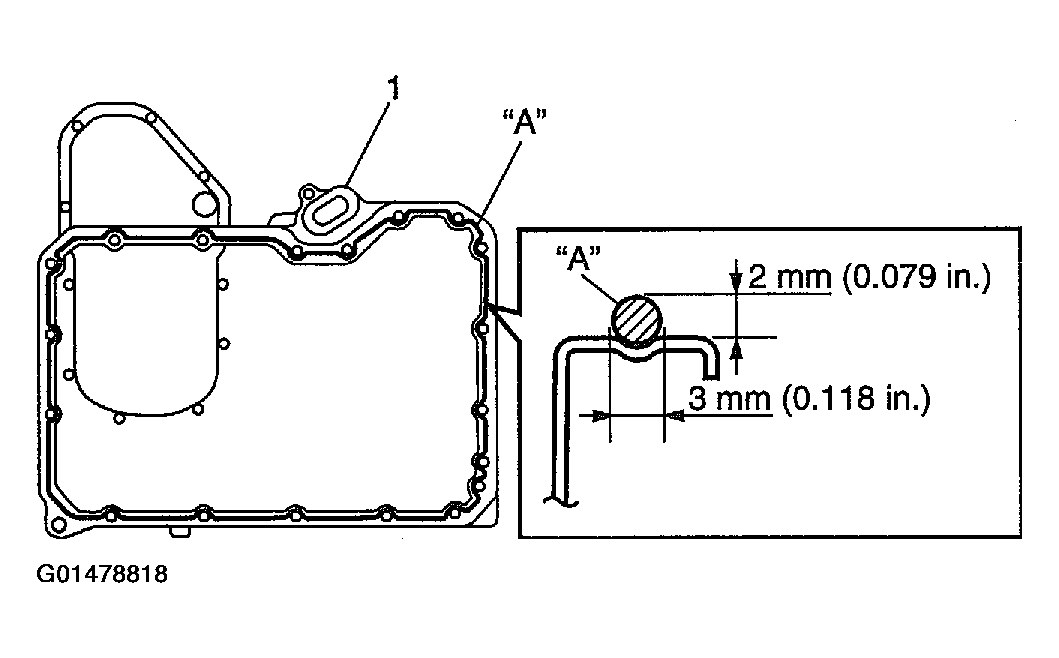

Apply sealant "A" to upper oil pan (1) sealing surface area as shown in the figure.
1. Sealant: 99000-31250
Fig 2: Applying Sealant
Courtesy of SUZUKI OF AMERICA CORP.
Place the upper oil pan (1) on the cross member and suspension member (just beneath the lower crankcase). At this point install oil pump strainer.
Tightening torque
1. Oil pump strainer bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)
Fig 3: Installing Oil Pump Strainer
Courtesy of SUZUKI OF AMERICA CORP.
Install upper oil pan (1) to lower crankcase.
Tightening torque
1. Oil pan bolt (to lower crankcase) (b): 11 N.m (1.1 kg-m, 8.0 lb-ft)
2. Oil pan bolt (to lower crankcase) (c): 27 N.m (2.7 kg-m, 19.5 lb-ft)
Fig 4: Installing Upper Oil Pan To Lower Crankcase
Courtesy of SUZUKI OF AMERICA CORP.
Install bracket (3) to oil pump strainer (2) and upper oil pan (1).
Tightening torque
1. Oil pump strainer bracket bolt (d): 11 N.m (1.1 kg-m, 8.0 lb-ft)
Fig 5: Installing Bracket To Oil Pump Strainer & Upper Oil Pan
Courtesy of SUZUKI OF AMERICA CORP.
Apply sealant "A" to lower oil pan sealing surface area as shown in the figure.
1. Sealant: 99000-31250
Fig 6: Applying Sealant
Courtesy of SUZUKI OF AMERICA CORP.
Install lower oil pan to upper oil pan.
Tightening torque
1. Oil pan bolt (to upper oil pan) (e): 11 N.m (1.1 kg-m, 8.0 lb-ft)
Install new gasket (1) and drain plug (2) to oil pan.
Tightening torque
1. Engine oil drain plug (f): 50 N.m (5.0 kg-m, 36.5 lb-ft)
Fig 7: Installing Gasket & Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Attach radiator outlet pipe to upper oil pan.
Install front differential housing FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING .
Install rack and pinion assembly. Refer to P/S GEAR BOX ASSEMBLY REMOVAL AND INSTALLATION .
Refill front differential housing with gear oil if drained, referring to Gear Oil Replacement in Owner's Manual .
Install oil level gauge guide with new O-ring.
Refill engine with engine oil referring to Engine Oil and Filter Change in Owner's Manual .
Check wheel alignment, referring to SPECIFICATIONS & PROCEDURES .
