Oil Pan and Oil Pump Strainer Components

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

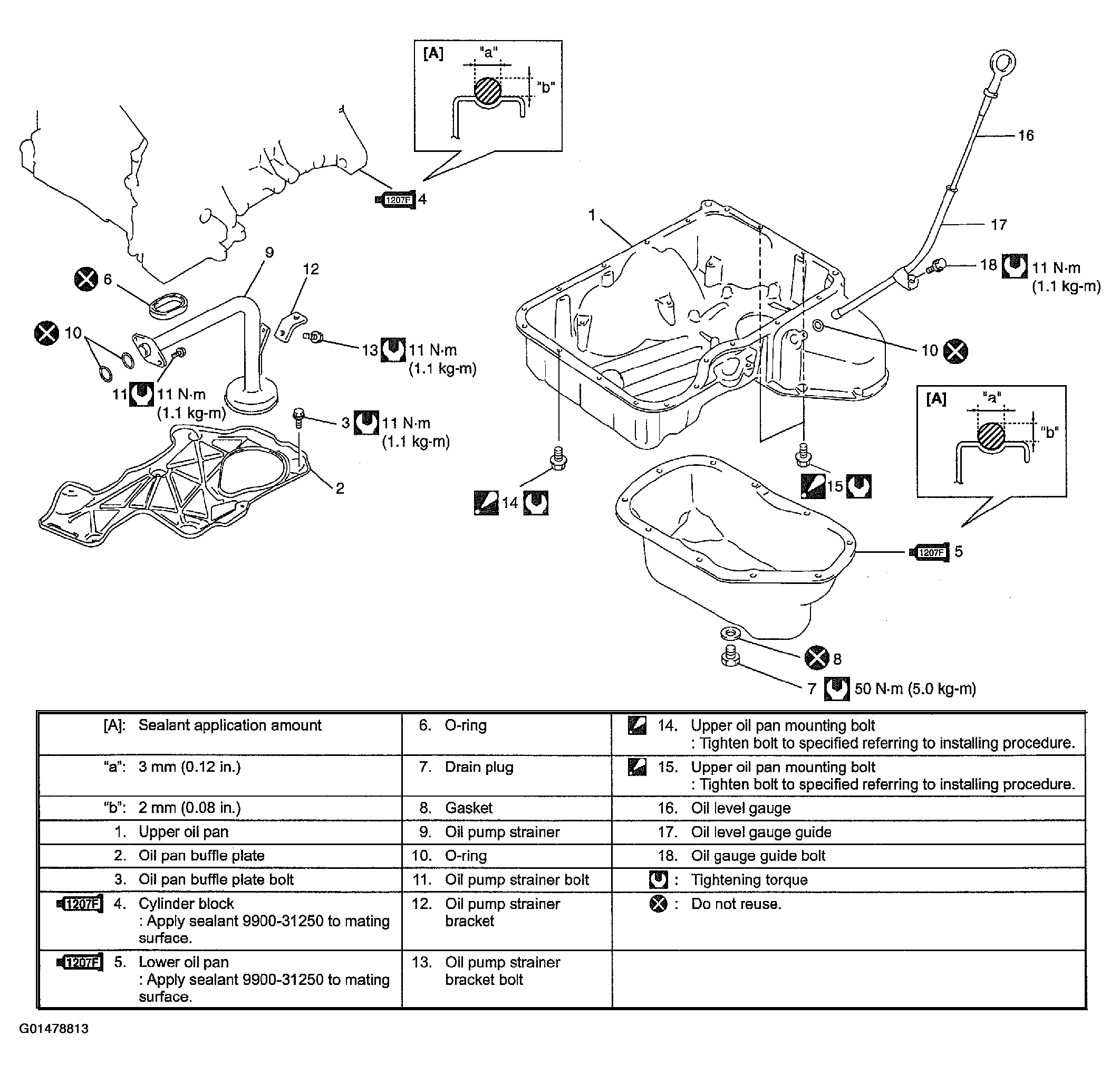

Fig 1: Exploded View Of Oil Pan & Oil Pump Strainer Components
G01478813Courtesy of SUZUKI OF AMERICA CORP.
