Exhaust Manifold Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative cable at battery.
Disconnect heated oxygen sensor-1 coupler (1) and detach it from its stay.
Remove upper cover (2) of exhaust manifold.

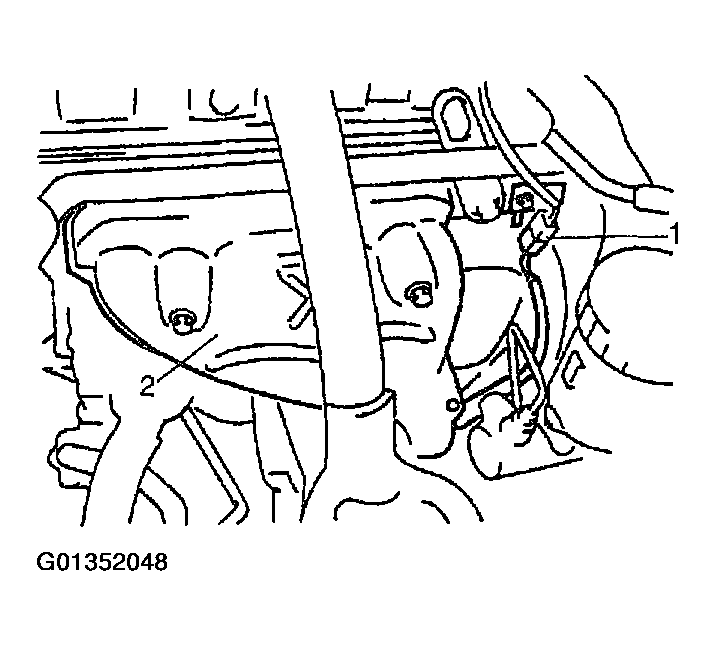

Fig 1: Removing Upper Cover From Exhaust Manifold
Courtesy of SUZUKI OF AMERICA CORP.
Remove exhaust manifold stiffener (1), if equipped.

Fig 2: Removing Exhaust Manifold Stiffener
Courtesy of SUZUKI OF AMERICA CORP.
Remove exhaust pipe bolts or nuts and exhaust pipe bracket bolt (if quipped).

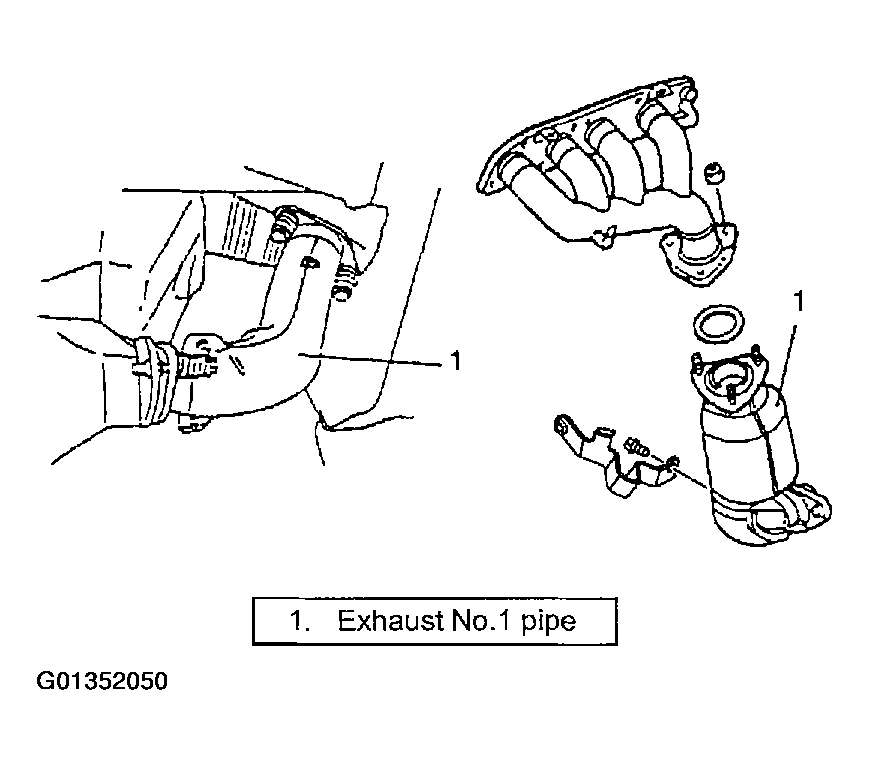

Fig 3: Removing Exhaust Pipe & Exhaust Pipe Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Remove exhaust manifold (1) and its gasket (2) from cylinder head.

Fig 4: Removing Exhaust Manifold & Gasket
Courtesy of SUZUKI OF AMERICA CORP.
