Rear blower motor resister resistance

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

"Mo" - "L":  Approx. 2.4 Ω

"Mo" - "ML":  Approx. 1.2 Ω

"Mo" - "MH":  Approx. 0.6 Ω

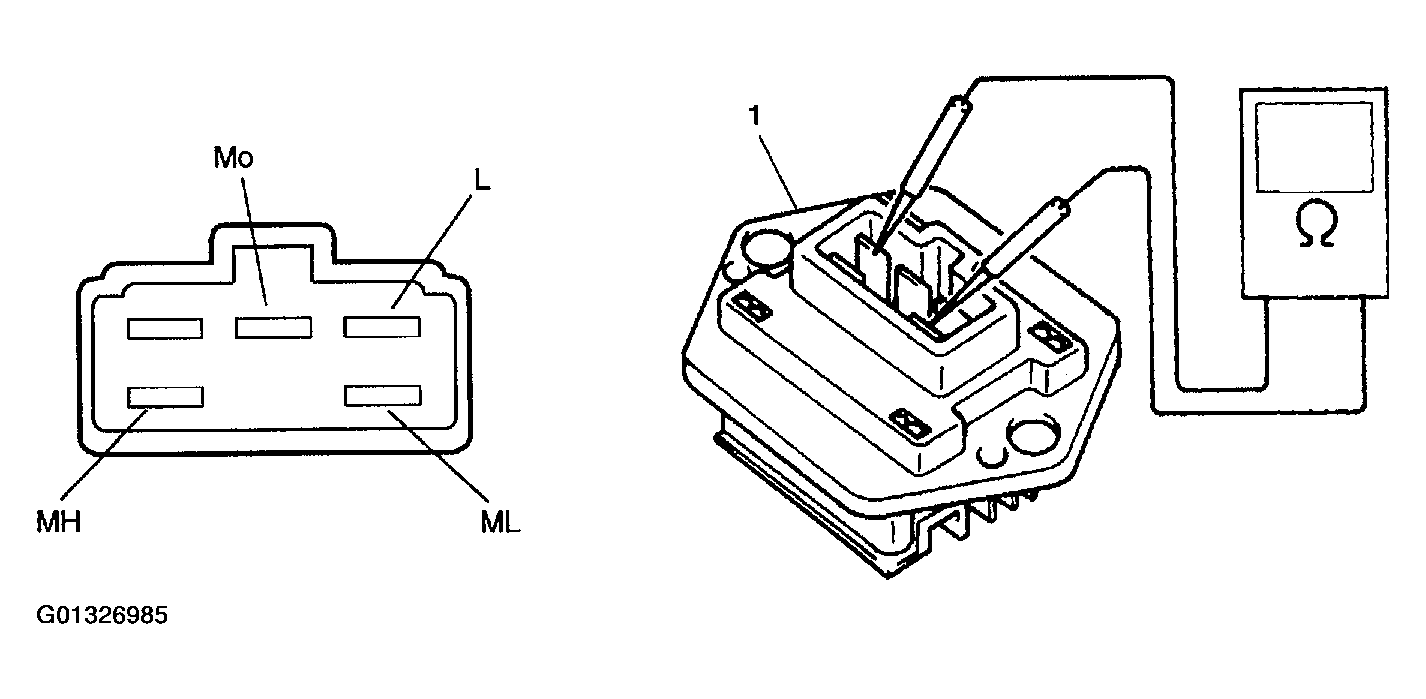

Fig 1: Measuring Blower Motor Resistance
G01326985Courtesy of SUZUKI OF AMERICA CORP.
