Rear A/C No. 2 Duct

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Never remove rear A/C No. 2 duct (2) from head lining. Performing this prohibited service will break head lining.

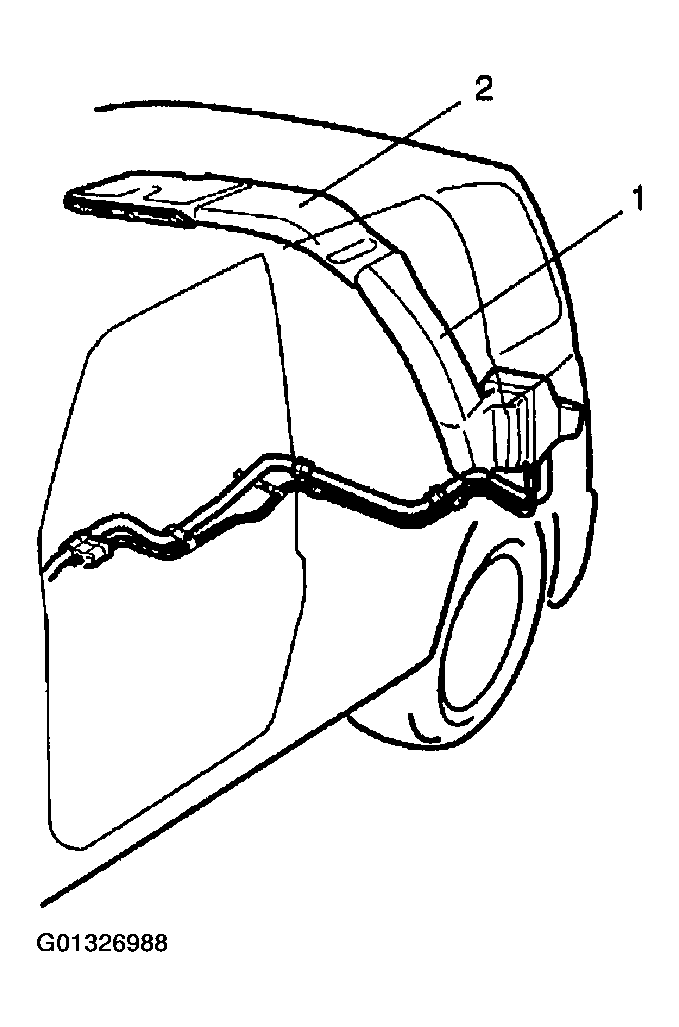

Fig 1: Identifying Rear A/C No. 1 and No. 2 Ducts
G01326988Courtesy of SUZUKI OF AMERICA CORP.
