HVAC Control Module Removal and Installation: Installation
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Install in reverse order of removal procedure, noting the following item.

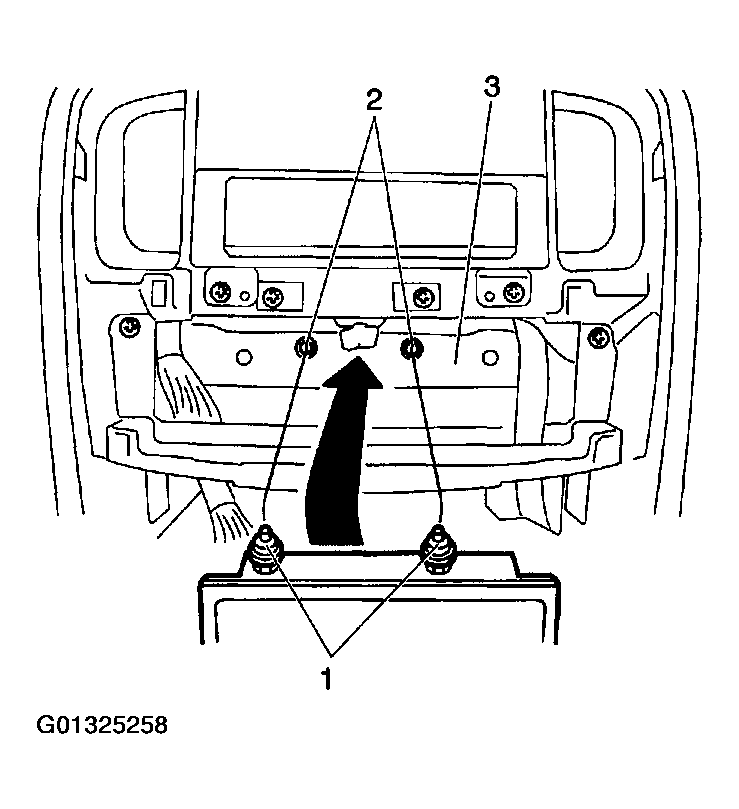

- When installing center garnish, align rubber bushing (1) with BCM installation hole (2) of instrument panel member (3).
- Enable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
