Blower Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable at battery.
Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Open glove box, then remove screw and damper located on the right side of the glove box.
Remove glove box.
Remove passenger lower member (1).

Fig 1: Removing Passenger Lower Member
Courtesy of SUZUKI OF AMERICA CORP.
Remove ECM (PCM) with bracket from blower unit.

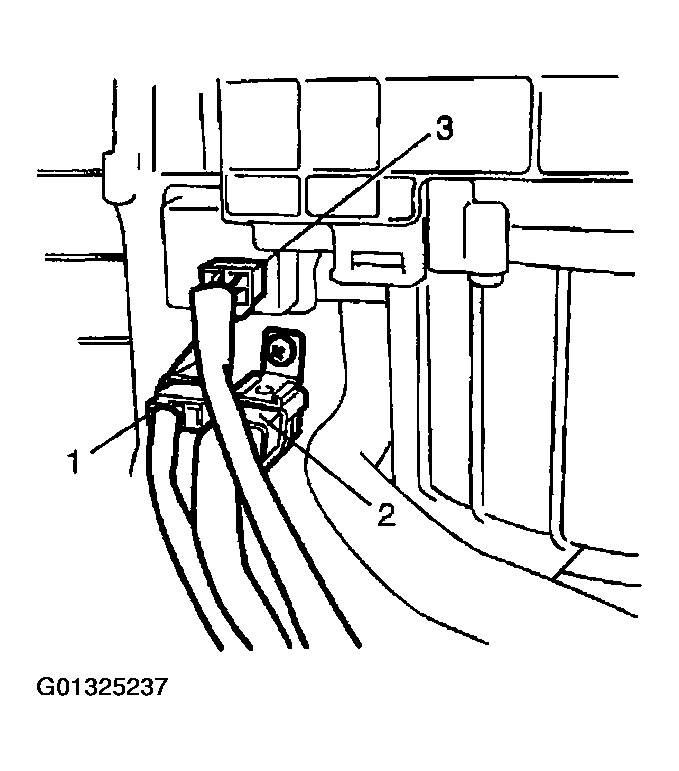

Disconnect blower motor lead wire (1), blower motor relay lead wire (2), and blower motor controller lead wire (3) at couplers.

Fig 2: Disconnecting Blower Motor Lead Wire
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect air intake actuator coupler.

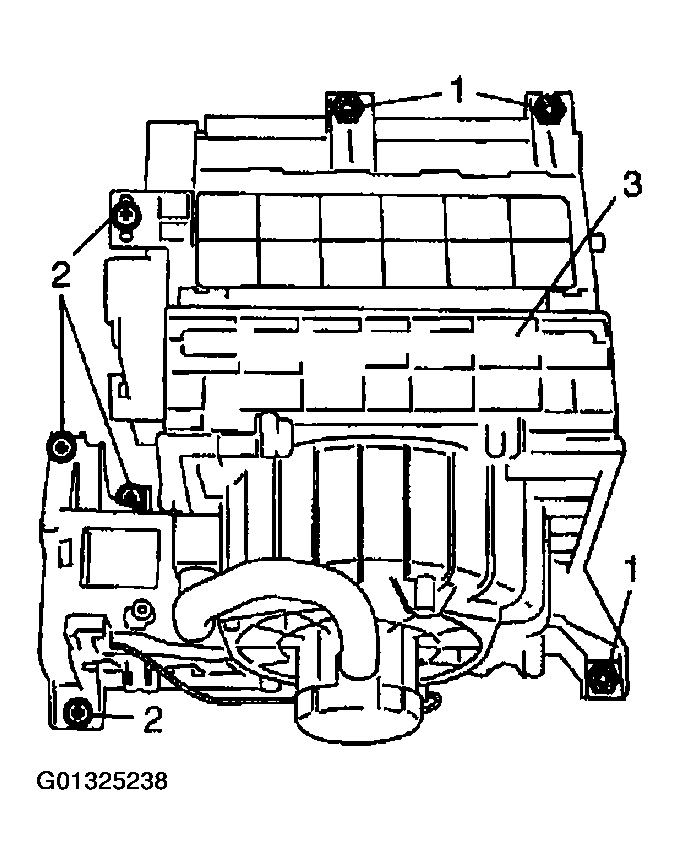

Remove fastening nuts (1) and screw (2), and then remove blower unit (3).

Fig 3: Removing Blower Unit
Courtesy of SUZUKI OF AMERICA CORP.
