Blower Motor inspection

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between terminal to terminal as shown in the figure. If check results are continuity, proceed to next operation check. If not, replace.

Fig 1: Checking Continuity Between Blower Motor Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Connect battery to blower motor as shown, then check if the blower motor operates smoothly.
Reference specified consumption current for blower motor: 18 - 24 A at 12 V

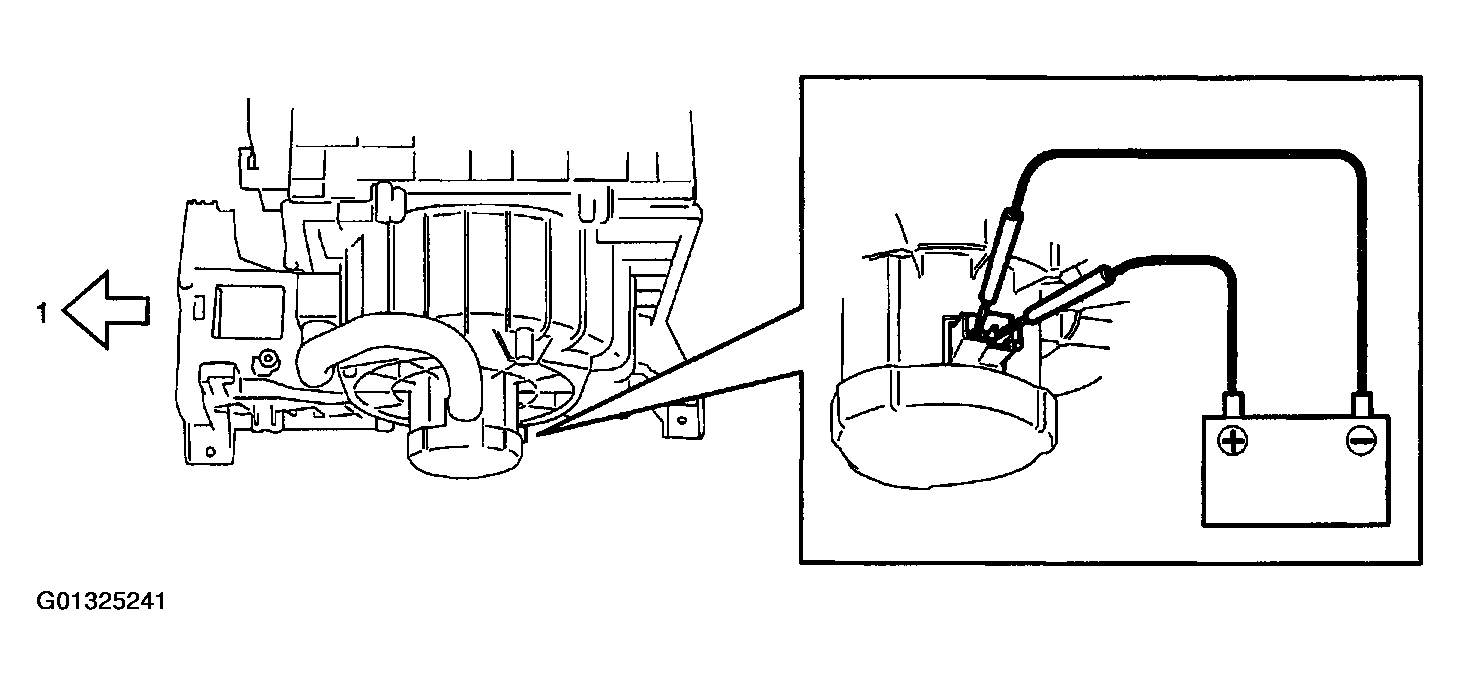

Fig 2: Connecting Battery To Blower Motor
Courtesy of SUZUKI OF AMERICA CORP.
