Blower Motor Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  3. Remove ECM (PCM) with bracket from blower unit.
  4. Disconnect blower motor lead wire (2) at coupler.
  5. Remove blower motor (3) from blower unit (1).

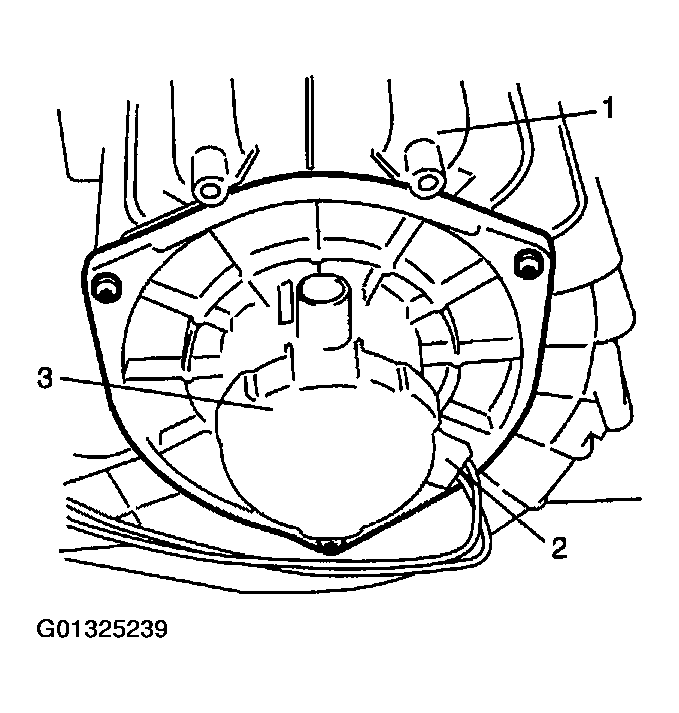

    Fig 1: Removing Blower Motor
    G01325239Courtesy of SUZUKI OF AMERICA CORP.
