Blower Motor Relay Removal and Installation: Removal
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative (-) cable at battery.
- Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Open glove box, then remove screw.
- Remove glove box.

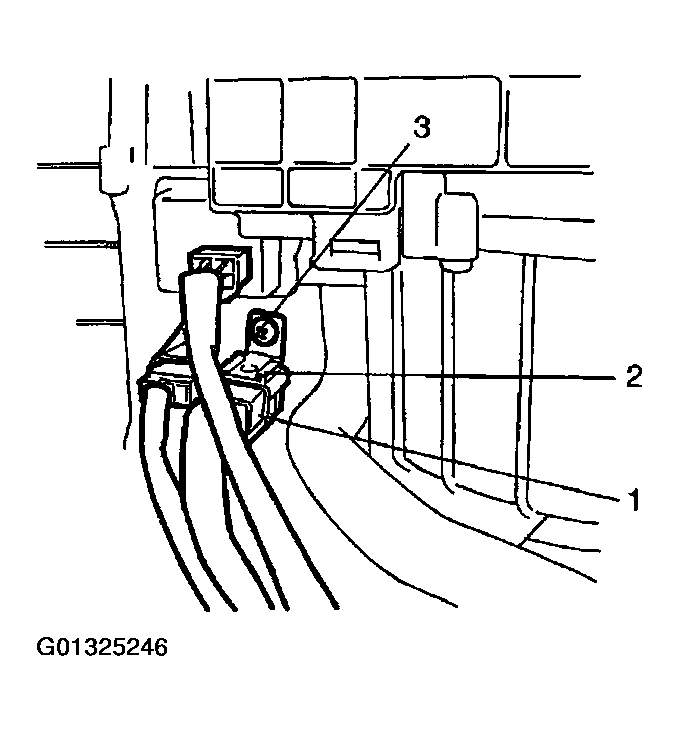

- Disconnect relay coupler (1).
- Remove blower motor relay (2) by loosening its fastening screw (3).
