Blower Motor Relay Inspection

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect battery positive (+) terminal to terminal (1) of relay.
  2. Connect battery negative (-) terminal to terminal (2) of relay.
  3. Check continuity between terminal (3) and (4). If there is no continuity, replace relay.

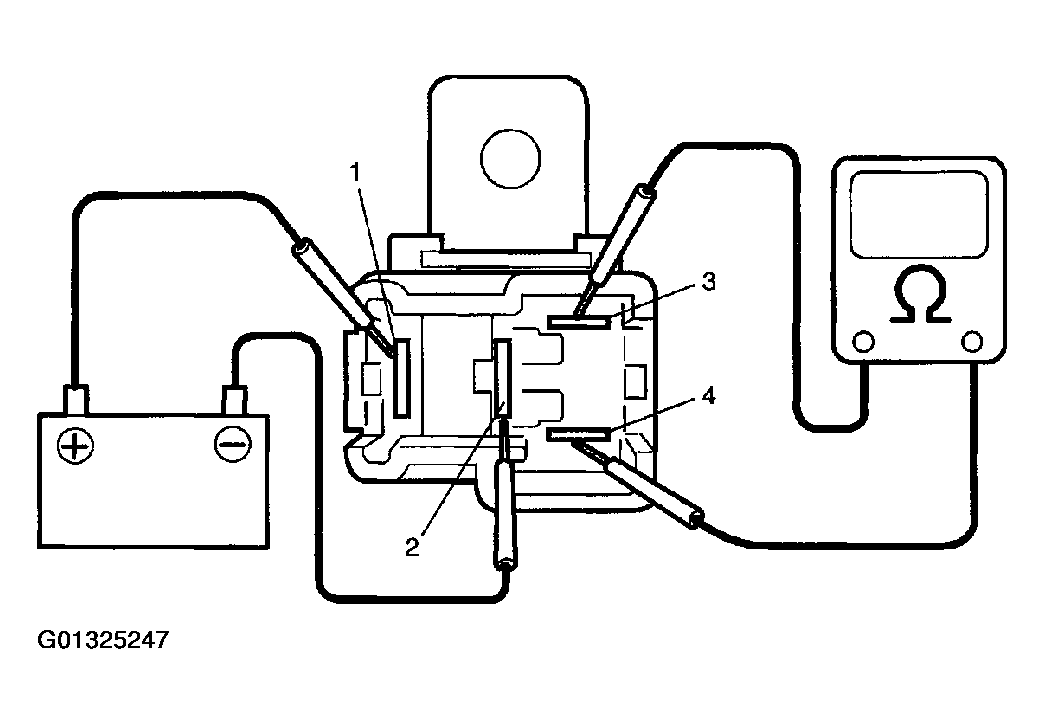

    Fig 1: Checking Continuity Between Relay Terminals
    G01325247Courtesy of SUZUKI OF AMERICA CORP.
