Blower Motor Controller Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative (-) cable (2) at battery (1).

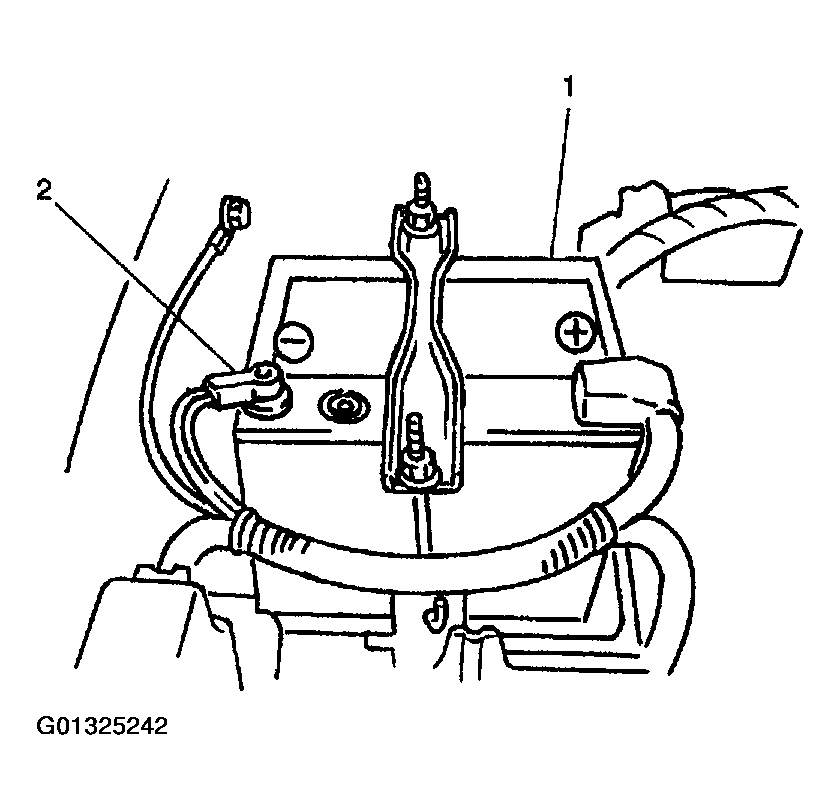

Fig 1: Disconnecting Negative Cable At Battery
Courtesy of SUZUKI OF AMERICA CORP.
Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Open glove box, then remove screw and damper located on the right side of the glove box.
Remove glove box.
Remove ECM (PCM) with bracket from blower motor unit.
Disconnect blower motor controller coupler.
Remove blower motor controller (1) by loosening its fastening screw (2).

Fig 2: Removing Blower Motor Controller
Courtesy of SUZUKI OF AMERICA CORP.
