Air Intake Actuator Inspection

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air intake actuator. Refer to AIR INTAKE ACTUATOR REMOVAL AND INSTALLATION  .
  2. Connect battery positive (+) terminal to terminal "a" and battery negative (-) terminal to terminal "c". Check if position of air intake actuator is REC.
  3. Connect battery positive (+) terminal to terminal "a" and battery negative (-) terminal to terminal "b". Check if position of air intake actuator is MIX.
  4. Connect battery positive (+) terminal to terminal "a" and battery negative (-) terminal to terminal "d". Check if position of air intake actuator is FRESH.

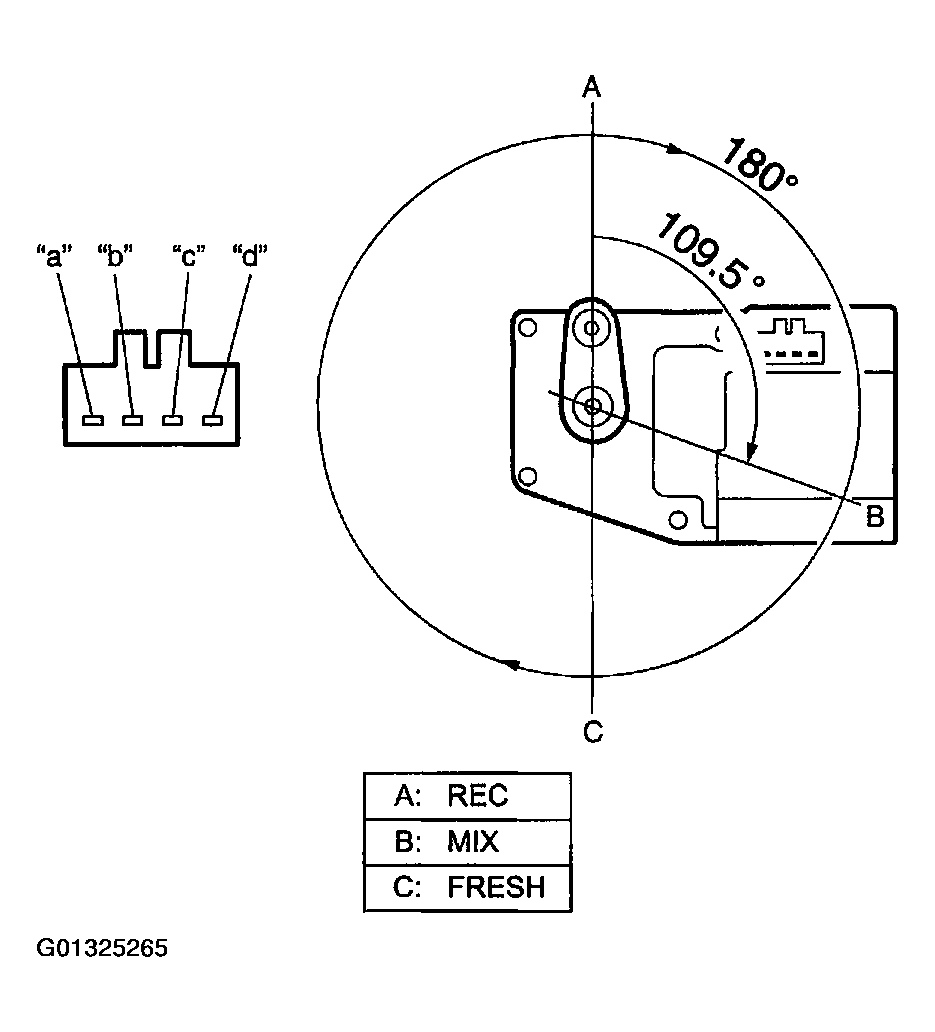

    Fig 1: Identifying Air Intake Actuator
    G01325265Courtesy of SUZUKI OF AMERICA CORP.
