Air Flow Control Actuator Removal and Installation: Removal
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative (-) cable at battery.
- Disable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
- Remove instrument panel. Refer to INSTRUMENT PANEL REMOVAL AND INSTALLATION .

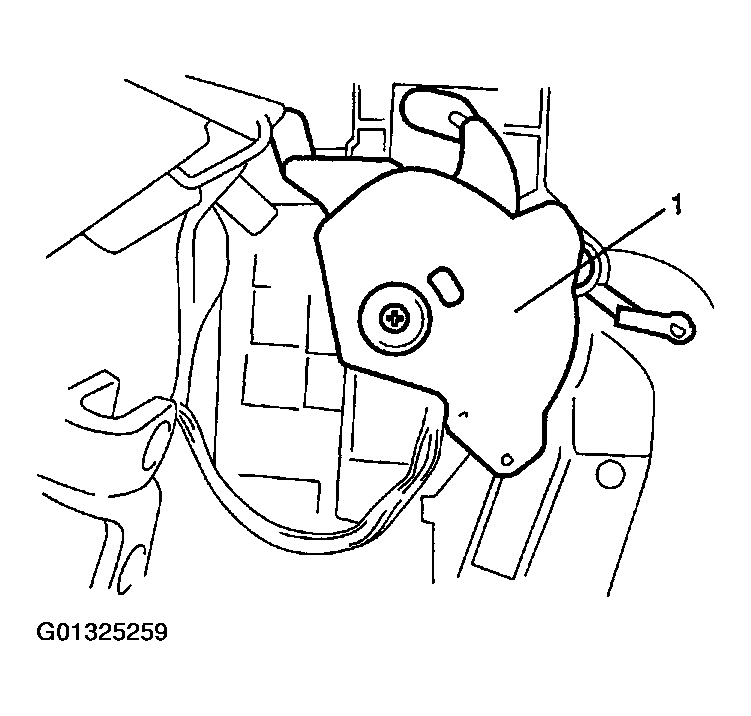

- Disconnect air flow control actuator linkage (1) from heater unit.

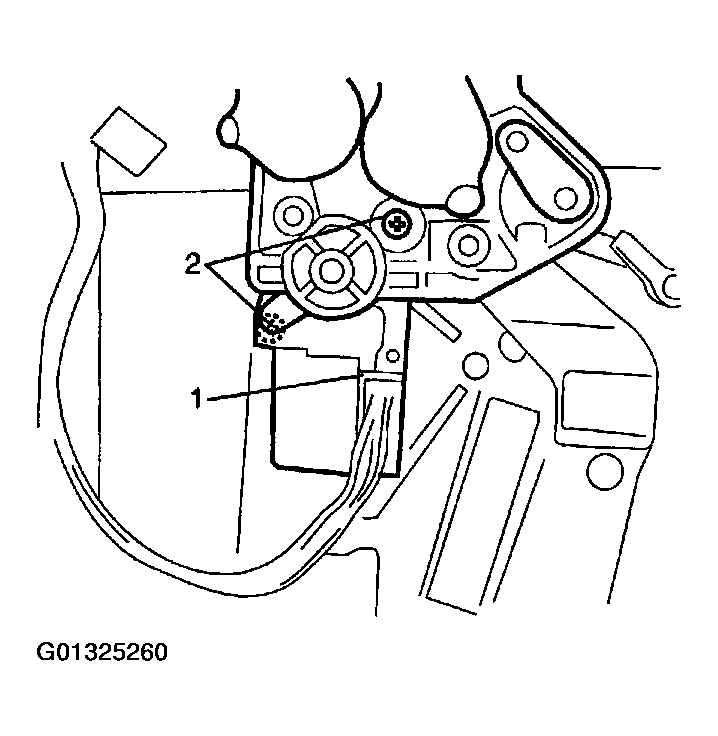

- Disconnect air flow control actuator coupler (1).
- Remove air flow control actuator from heater unit by removing its mounting screw (2).
