Instrument Panel Removal and Installation: Installation
WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
Install instrument panel by reversing removal procedure, noting the following items.
- When installing each part, be careful not to catch wiring harness.
- Tighten instrument panel bolt to specified torque.
Tightening torque
Instrument panel bolt (a): 23 N.m (2.3 kg-m, 17.0 lb-ft)
- When installing steering column assembly, refer to STEERING COLUMN REMOVAL AND INSTALLATION .
- Enable air bag system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

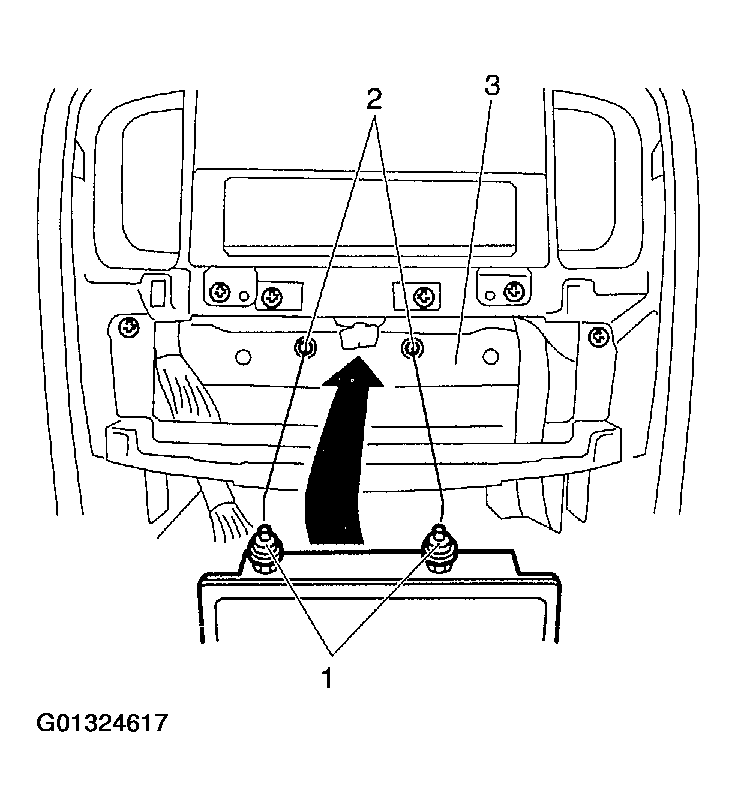

- When installing center garnish, align rubber bushing (1) with BCM installation hole (2) of instrument panel member (3).
