Brake Warning Lamp Symptom Diagnosis
WARNING:
This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

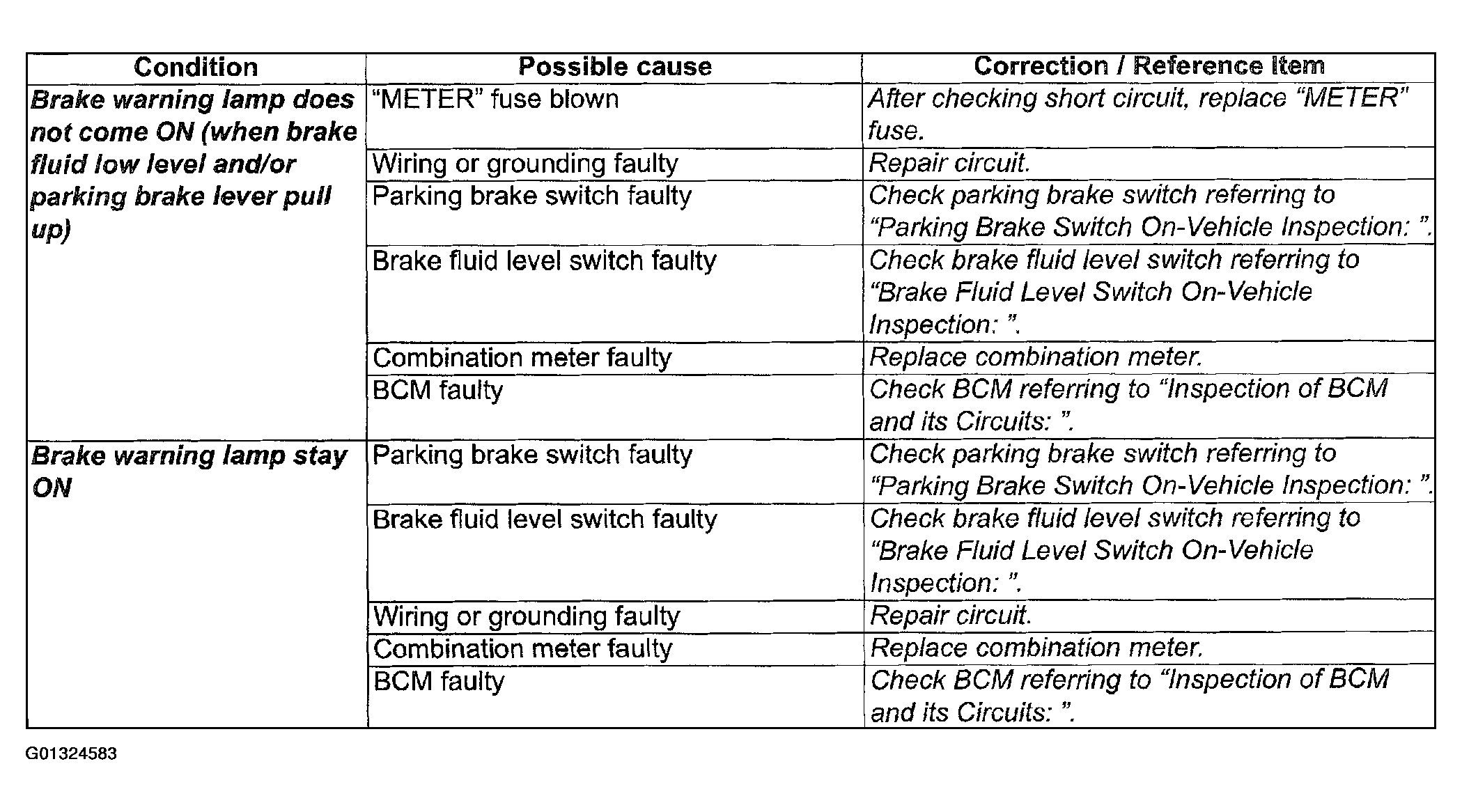

Fig 1: Brake Warning Lamp Symptom Diagnosis Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

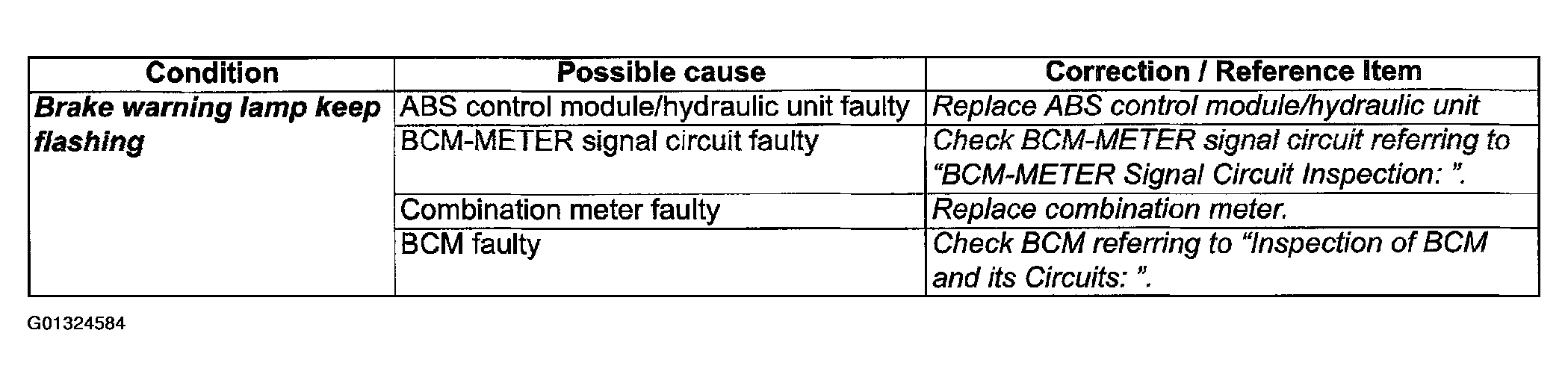

Fig 2: Brake Warning Lamp Symptom Diagnosis Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
