Roof Molding (If Equipped) Removal and Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

If roof rail is equipped, remove it in advance. (Refer to ROOF RAIL (IF EQUIPPED) REMOVAL AND INSTALLATION  ).

When reusing roof molding, be careful not to make roof molding warped.

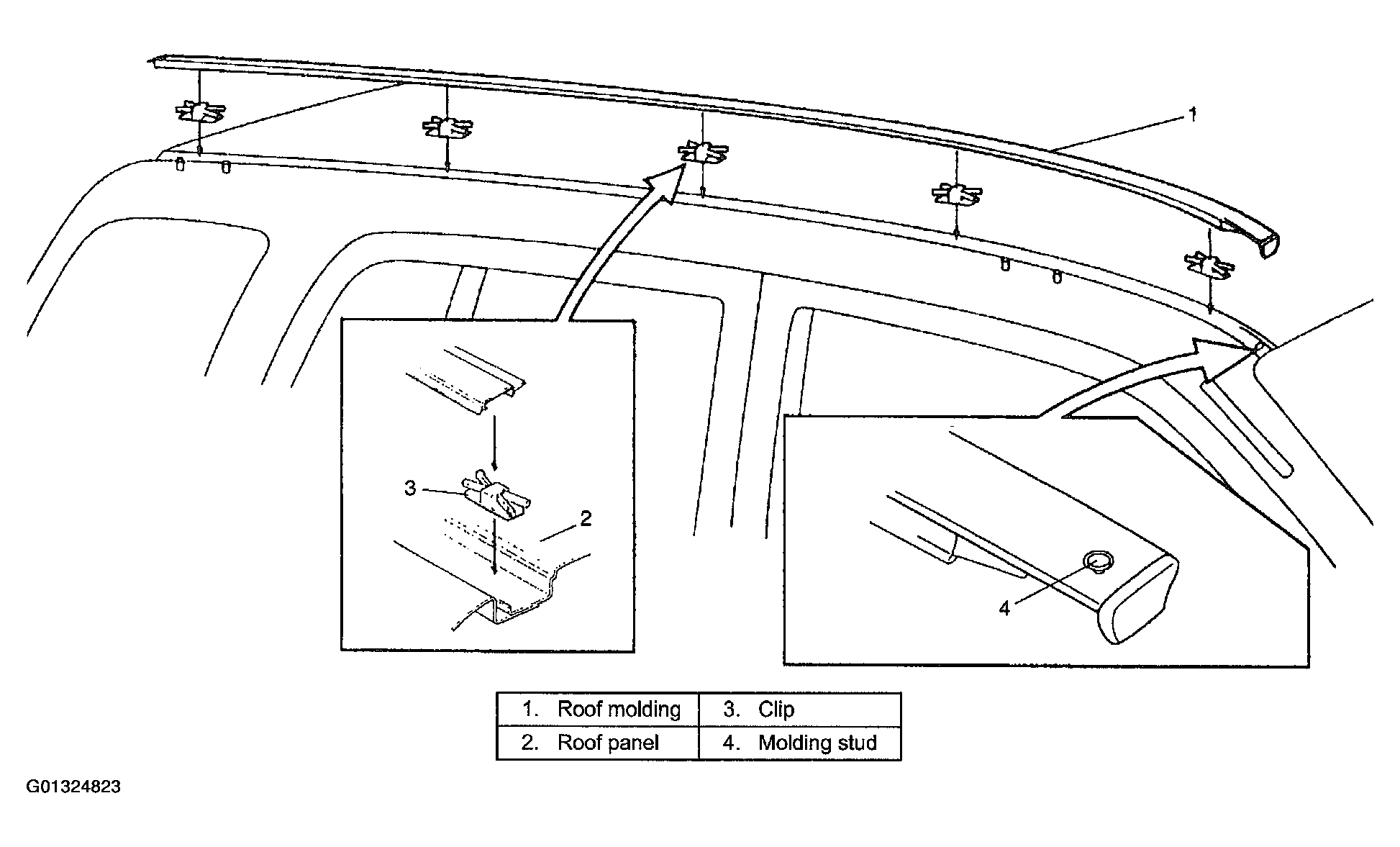

Fig 1: Removing/Installing Roof Molding
G01324823Courtesy of SUZUKI OF AMERICA CORP.
