Hood Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove window washer hose from hood (2).
  2. Remove four mounting bolts (1) to detach hood (2).

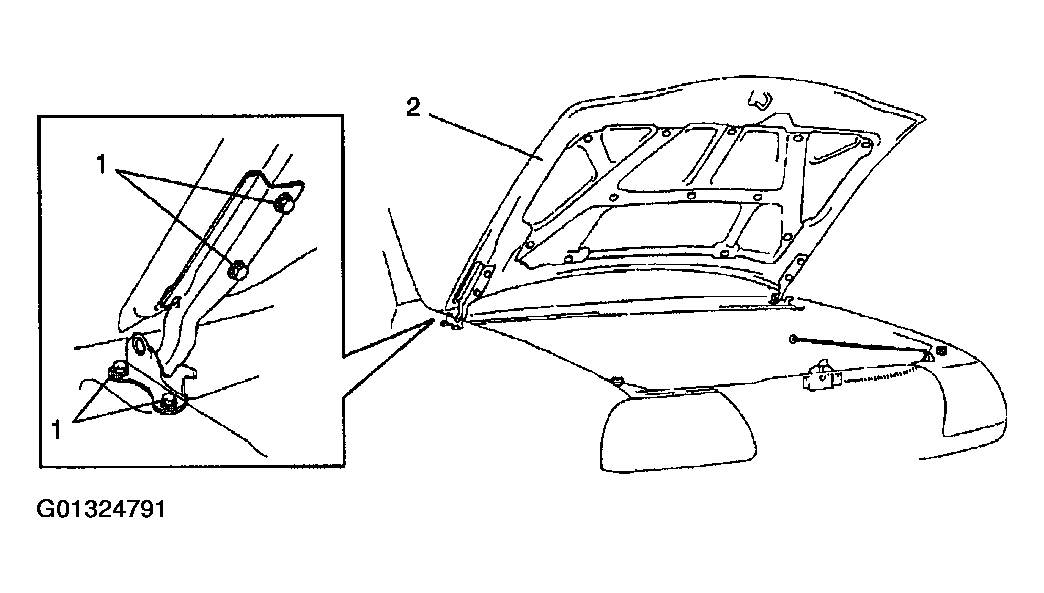

    Fig 1: Removing Hood
    G01324791Courtesy of SUZUKI OF AMERICA CORP.
