Steering Wheel Removal and Installation: Installation

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that vehicle's front tires are at straight-ahead position and contact coil is centered. Refer to CENTERING CONTACT COIL  .
    CAUTION: These two conditions are prerequisite for installation of steering wheel. If steering wheel has been installed without these conditions, contact coil will break when steering wheel is turned.
  2. Install steering wheel (1) to steering shaft with 3 lugs (2) on contact coil fitted in three grooves (3) in the back of steering wheel and also aligning marks (4) on steering wheel and steering shaft.
  3. Tighten steering shaft nut to specified torque.

    Tightening torque

    Steering shaft nut (a):  33 N.m (3.3 kg-m, 24.0 lb-ft)

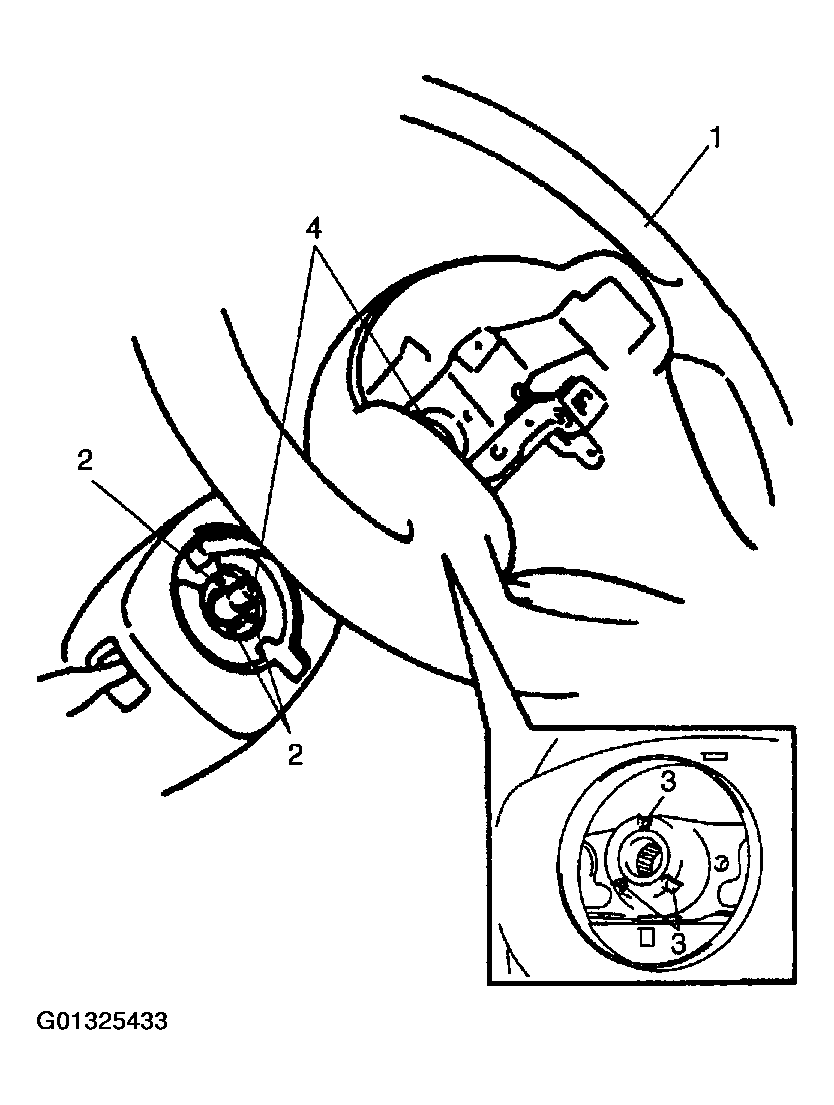

    Fig 1: Installing Steering Wheel
    G01325433Courtesy of SUZUKI OF AMERICA CORP.
  4. Install driver air bag (inflator) module to steering wheel. Refer to AIR BAG RESTRAINT SYSTEMS .
