Contact Coil and Combination Switch Assembly Removal and Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering wheel from steering column. Refer to STEERING WHEEL REMOVAL AND INSTALLATION .
Remove steering column hole cover (1).

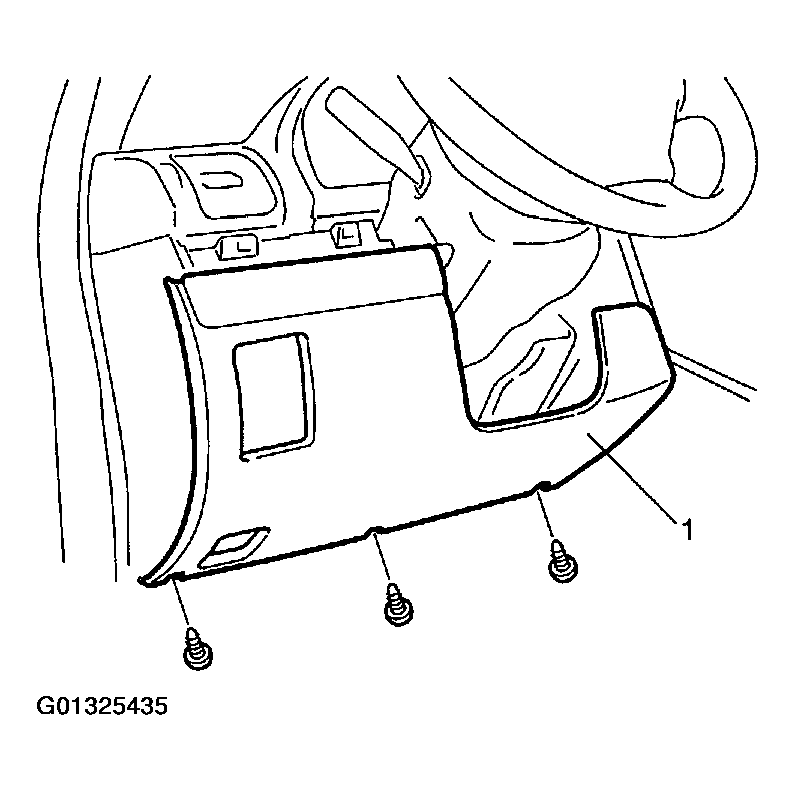

Fig 1: Removing Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering column cover screws (1) (3 pieces).
Separate upper cover (2) and lower cover (3), then remove them.

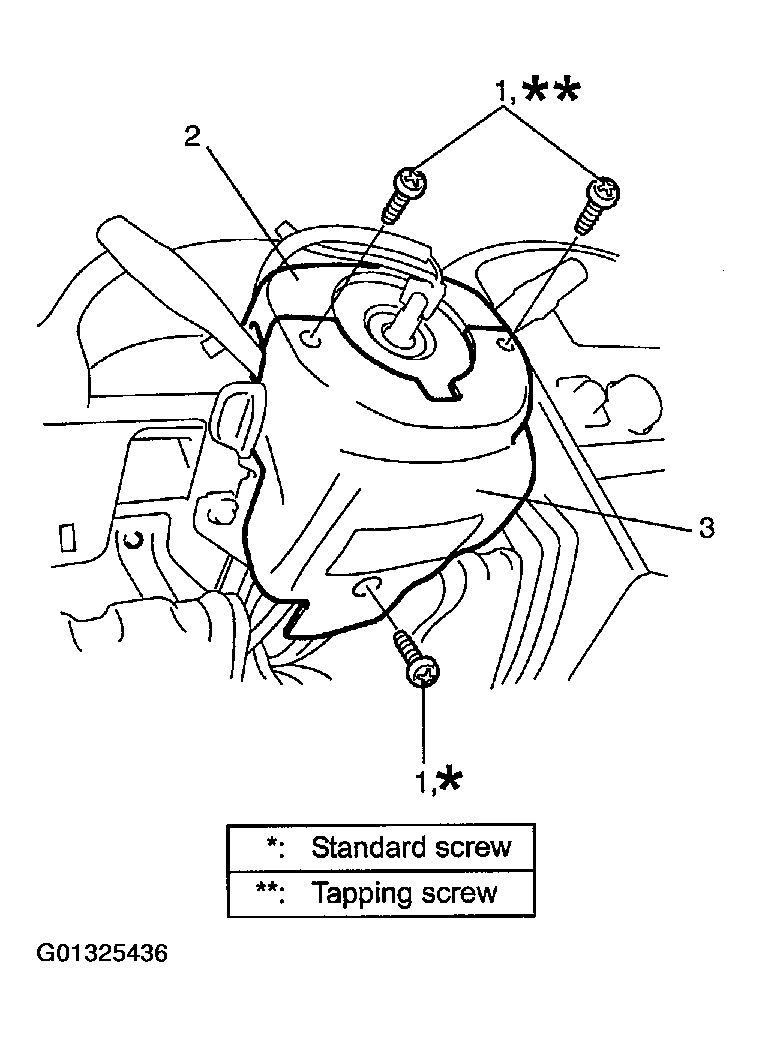

Fig 2: Removing Upper & Lower Covers
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect all connectors for contact coil and combination switch assembly.
Remove contact coil and combination switch assembly (1) from steering column.

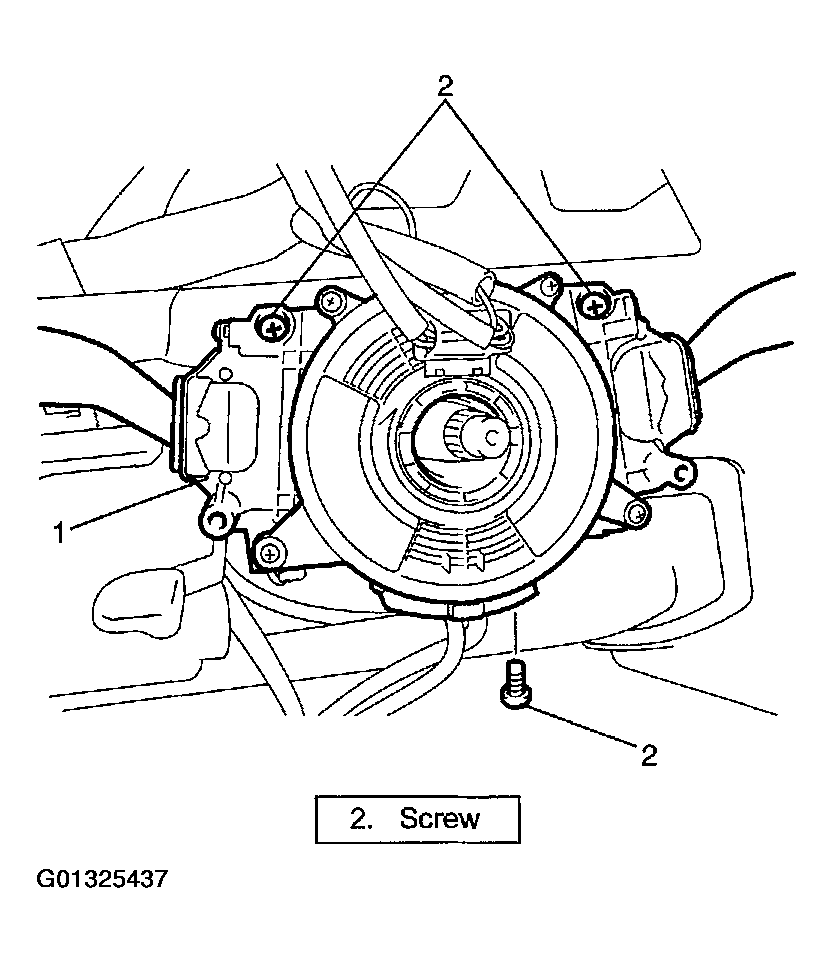

Fig 3: Removing Contact Coil & Combination Switch
Courtesy of SUZUKI OF AMERICA CORP.
