DTC B1141, B1142 (No. 41, 42): Outside Air Temperature (Ambient Temp.) Sensor Circuit Open, Short to Ground: Wiring Diagram

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

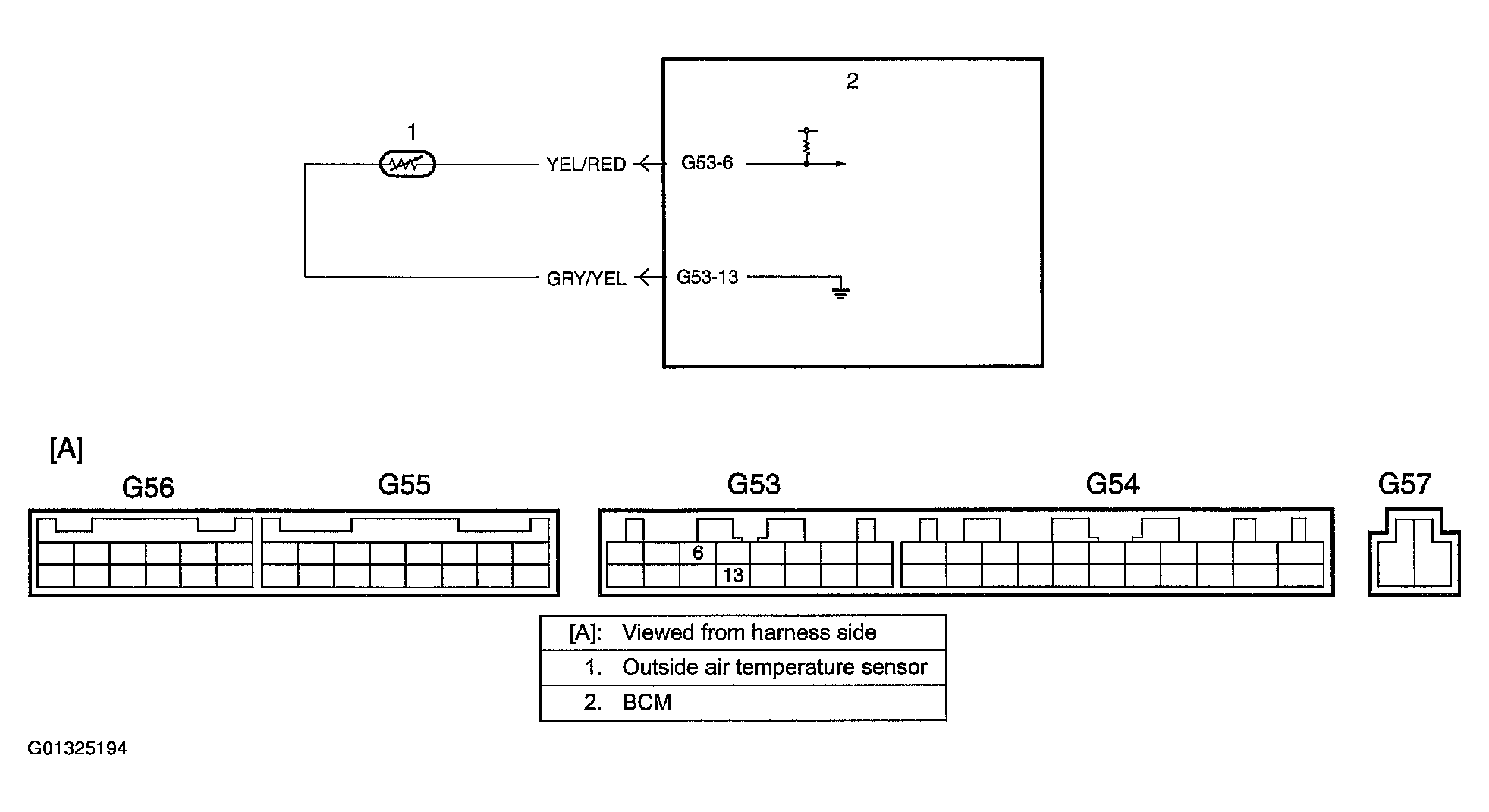

Fig 1: DTC B1141/B1142 (No. 41/42) Wiring Diagram
G01325194Courtesy of SUZUKI OF AMERICA CORP.
