Diagnostic Trouble Codes B1141 (No. 41):

WARNING: This page is about a different car, the 2003 Suzuki XL-7 and 2003 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

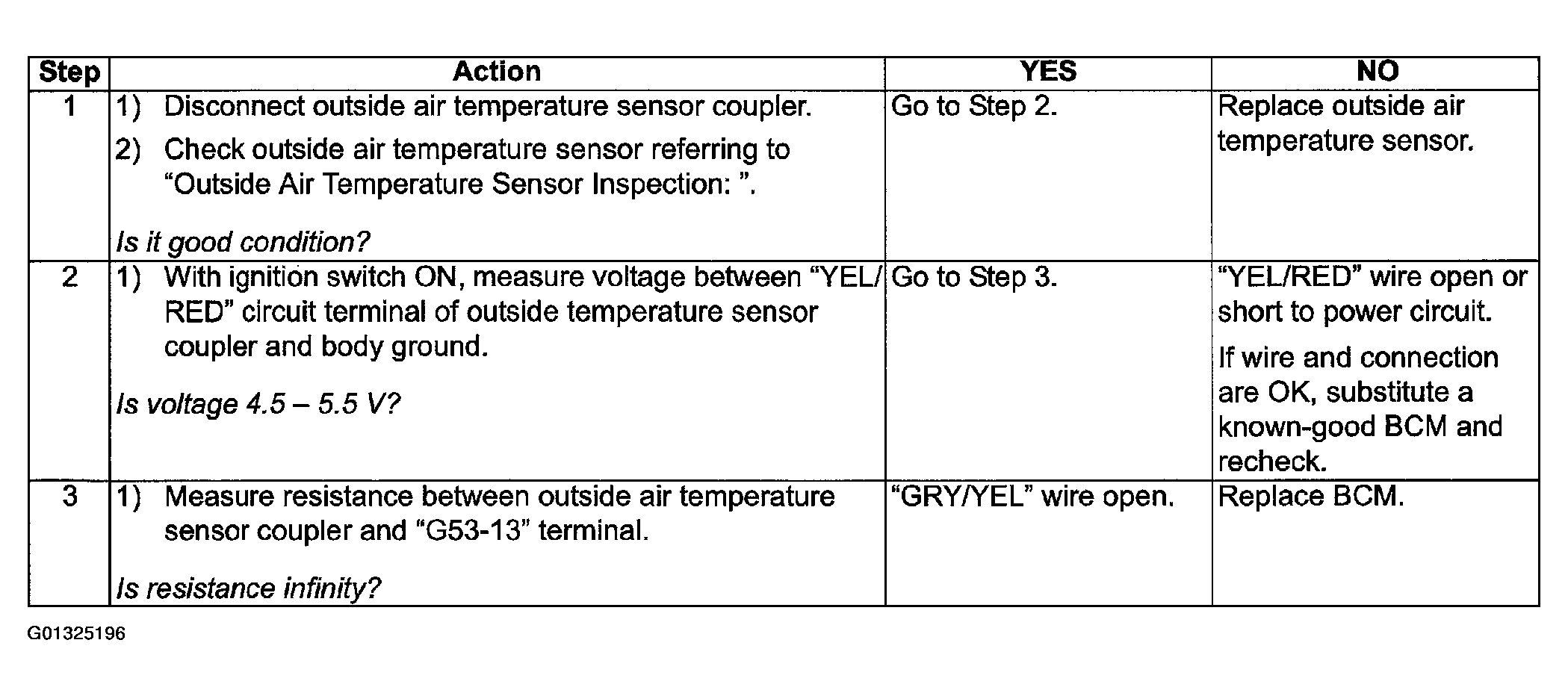

Fig 1: DTC B1141 (No. 41) Troubleshooting Chart
G01325196Courtesy of SUZUKI OF AMERICA CORP.
