Manual Transmission Assembly Dismounting & Remounting: Dismounting: Remounting
WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
For remounting, reverse dismounting procedure.
- Use specified torques as given below.

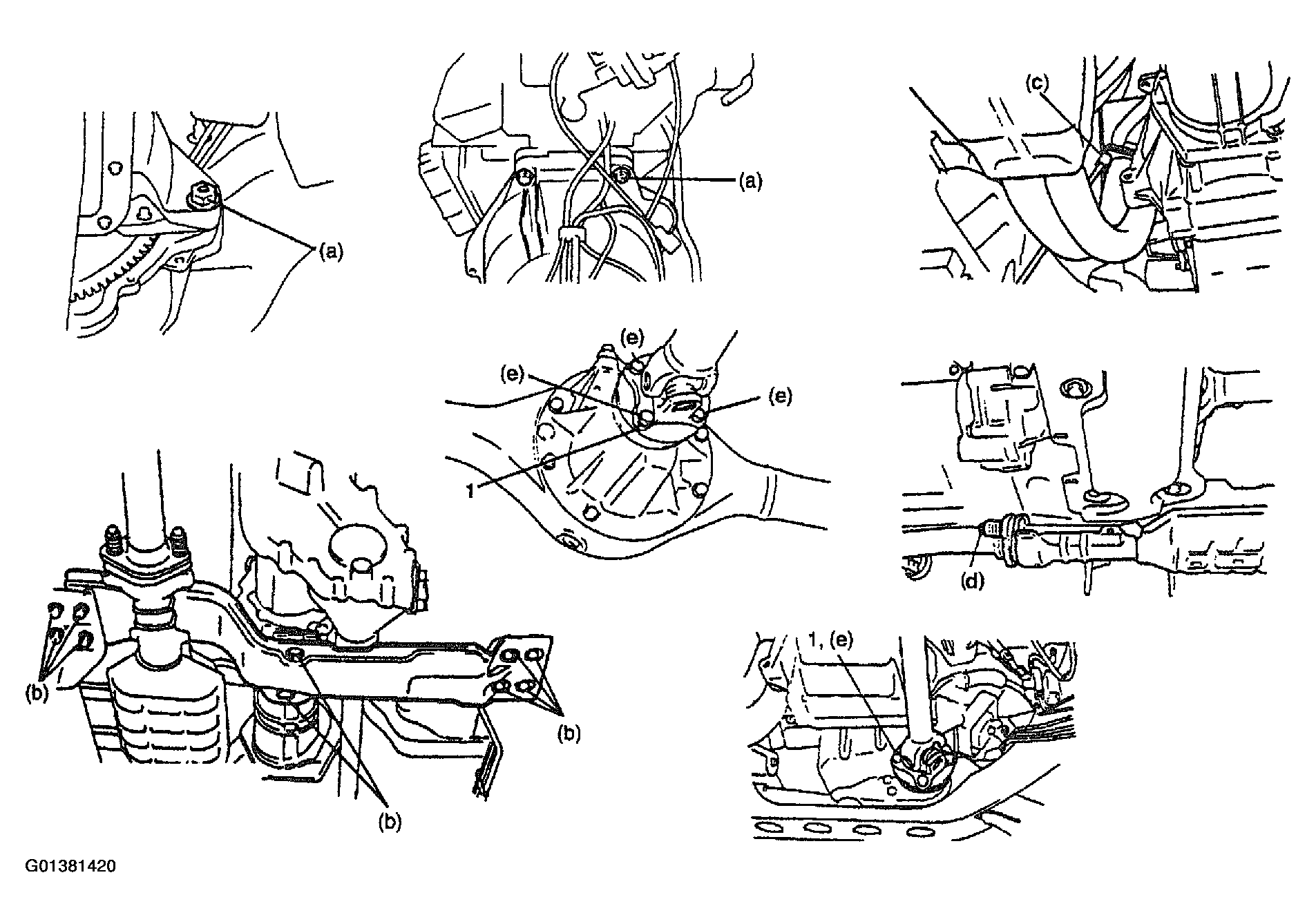

Tightening torque
- Transmission to engine bolt and nut (a): 85 N.m (8.5 kg-m, 61.5 lb-ft)
- Engine rear mounting bolt and nut (b): 50 N.m (5.0 kg-m, 36.5 lb-ft)
- Exhaust center pipe to manifold nut (c): 50 N.m (5.0 kg-m, 36.5 lb-ft)
- Muffler to exhaust center pipe bolt (d): 50 N.m (5.0 kg-m, 36.5 lb-ft)
- Universal joint flange bolt (e): 50 N.m (5.0 kg-m, 36.5 lb-ft)
- For tightening torque of transmission stiffener bolt. See ENGINE ASSEMBLY REMOVAL AND INSTALLATION .
- Set each clamp for wiring, hose and cable securely.
- Set clamp for shift control lever boots securely.
- After installing clutch operating cylinder, check clutch pedal free travel. See CLUTCH OPERATING CYLINDER REMOVAL & INSTALLATION .
- Fill gear oil to transmission and transfer as specified.
- Connect battery and check function of engine, clutch, transmission and transfer.
- When installing propeller shaft, align the match marks (1).
