In engine room

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable of battery.
  2. Remove breather hose (3) from clamp (2) at the rear end of cylinder head.

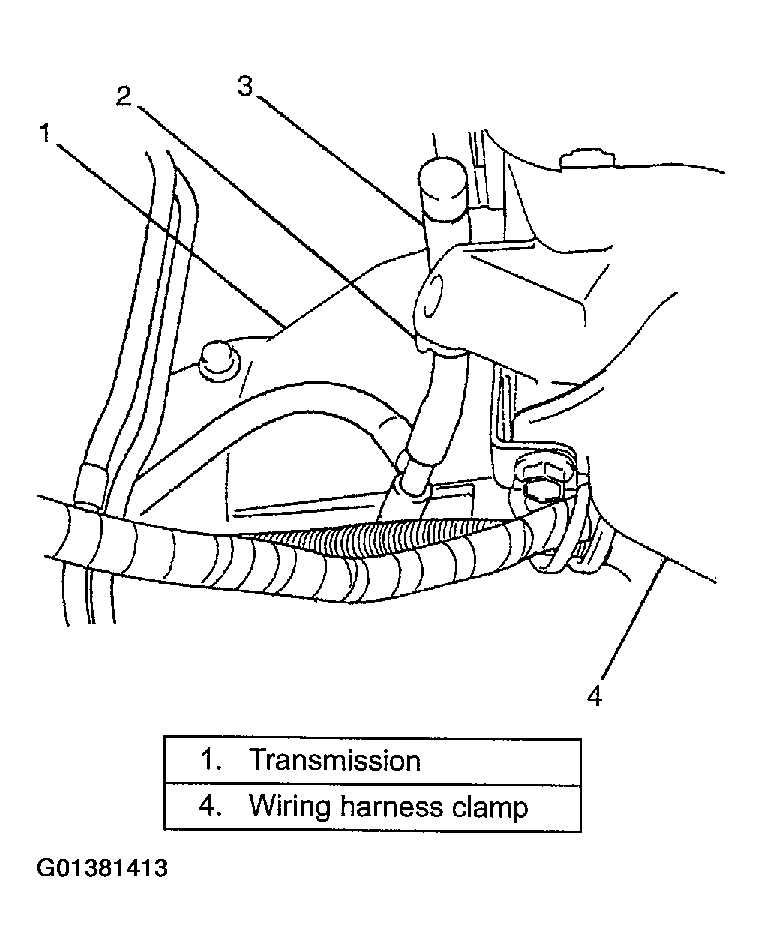

    Fig 1: Identifying Breather Hose & Breather Hose Clamp
    G01381413Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove starting motor fixing bolts (2) and nut (3) and then remove starter (1).
    Fig 2: Identifying Starter Bolts & Nut
    G01381414Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove transmission fastening bolts (1).

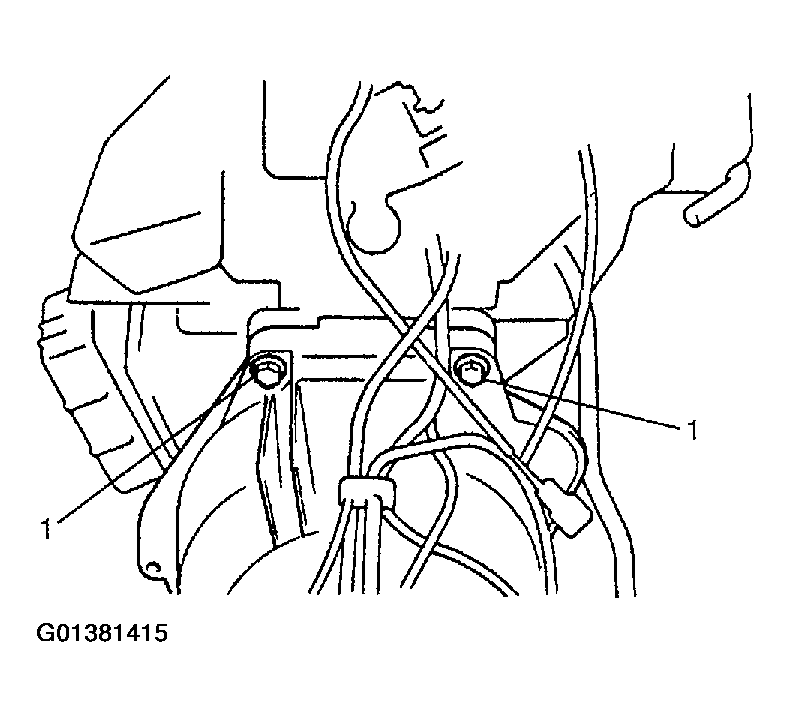

    Fig 3: Identifying Transmission Fastening Bolts
    G01381415Courtesy of SUZUKI OF AMERICA CORP.
