Section 131 (2.0L 4-Cylinder)
>>
Special Tools & Equipment
>>
Special Tools
Special Tools
WARNING:
This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

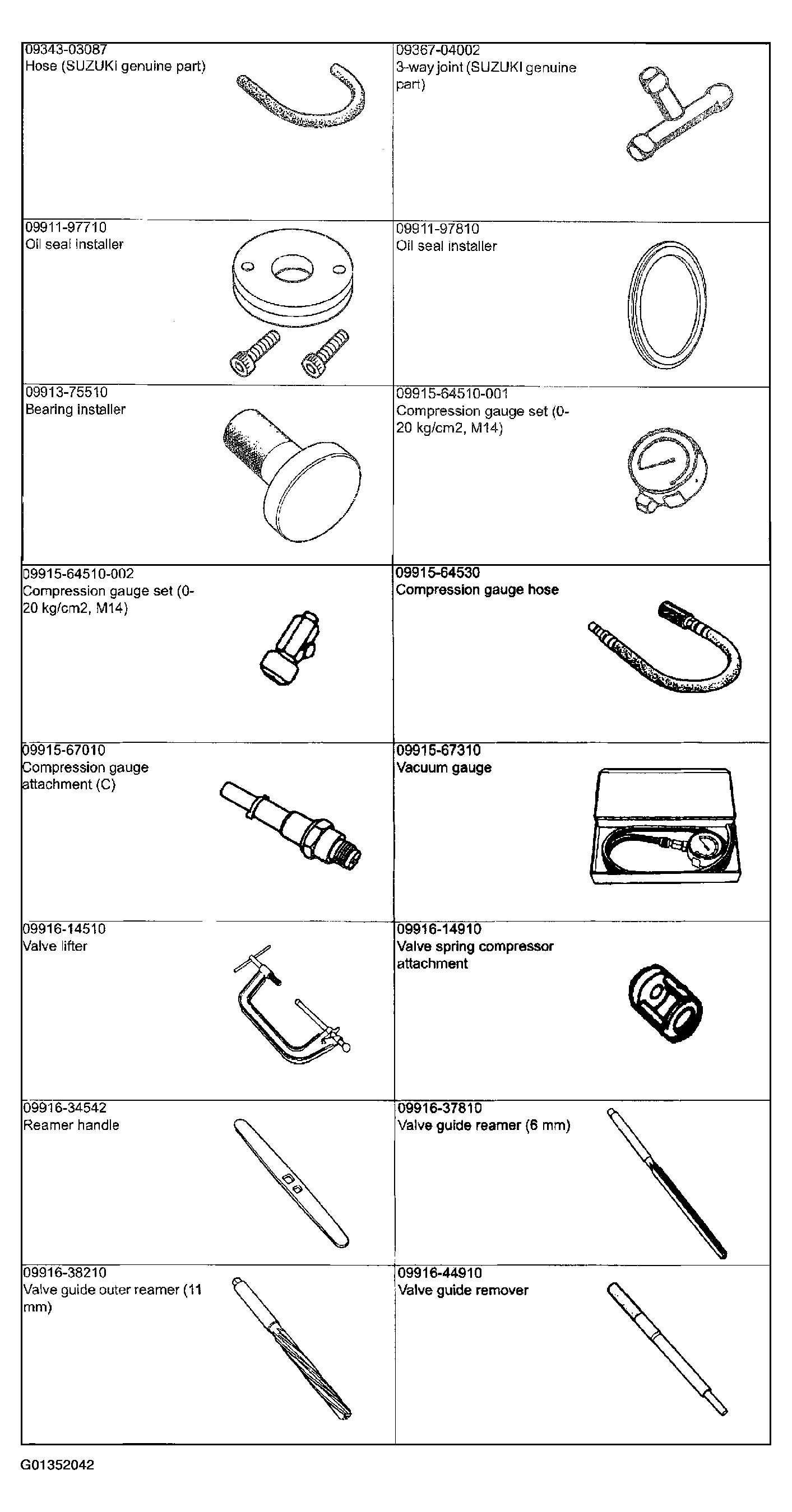

Fig 1: Identifying Special Tools (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

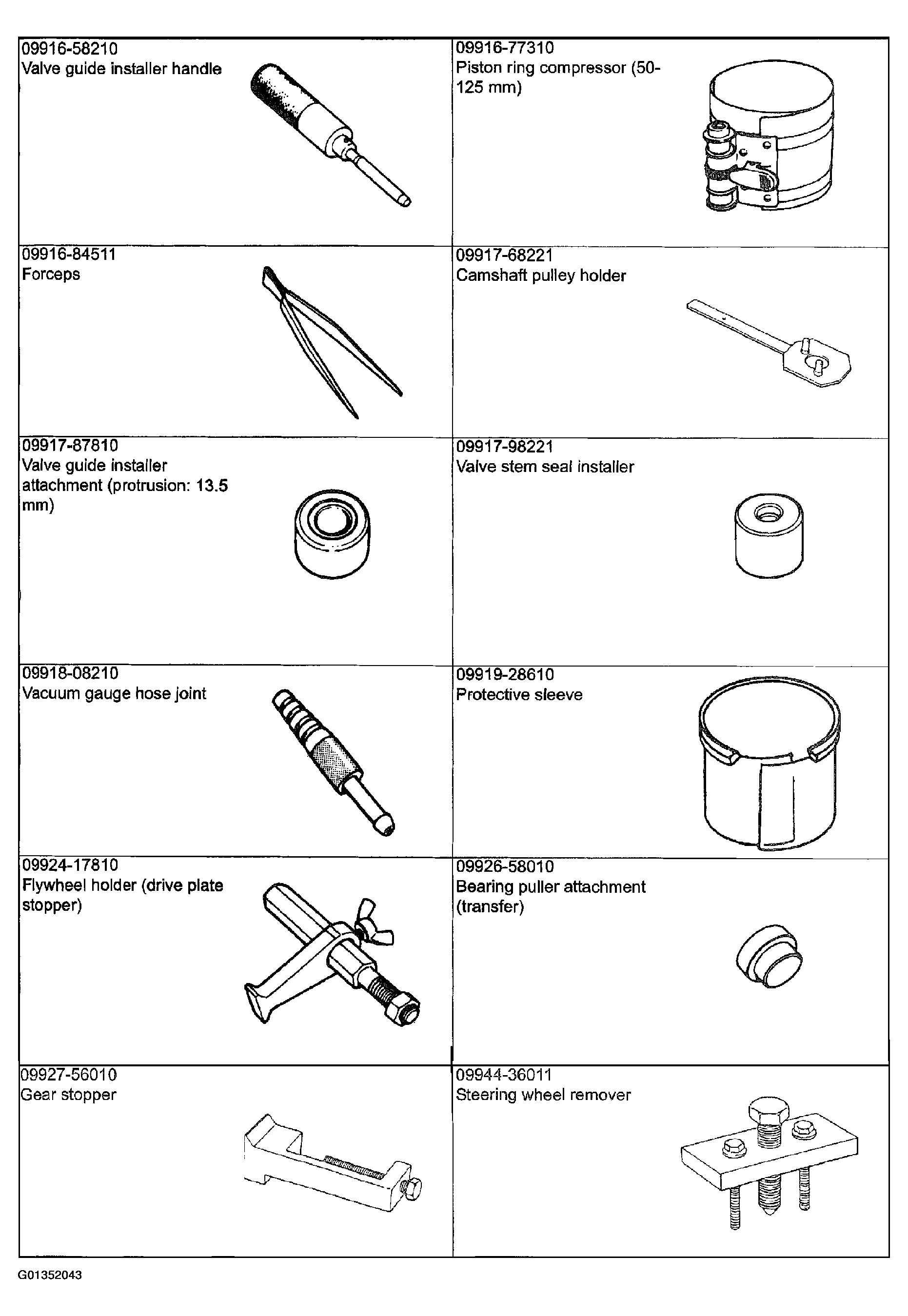

Fig 2: Identifying Special Tools (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
