Wear of Hydraulic Valve Lash Adjuster

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check adjuster for pitting, scratches, or damage. If any malcondition is found, replace.

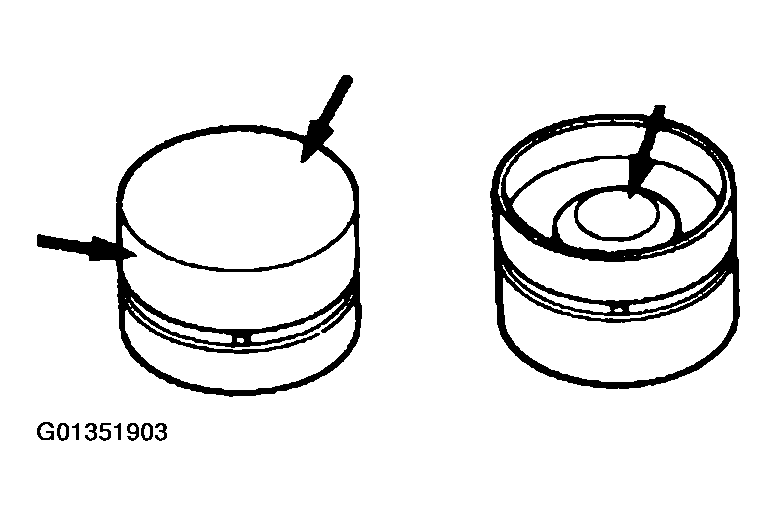

Fig 1: Checking Adjuster For Pitting, Scratches & Damage

Courtesy of SUZUKI OF AMERICA CORP.

Measure cylinder head bore and adjuster outside diameter to determine cylinder head-to-adjuster clearance. If clearance exceeds limit, replace adjuster or cylinder head.

Hydraulic valve last adjuster O.D.

Standard: 30.959 - 30.975 mm (1.2189 - 1.2195 in.)

Cylinder head bore

Standard: 31.000 - 31.025 mm (1.2205 - 1.2215 in.)

Cylinder head to adjuster clearance

Standard: 0.025 - 0.066 mm (0.0010 - 0.0026 in.)
Limit: 0.15 mm (0.0059 in.)

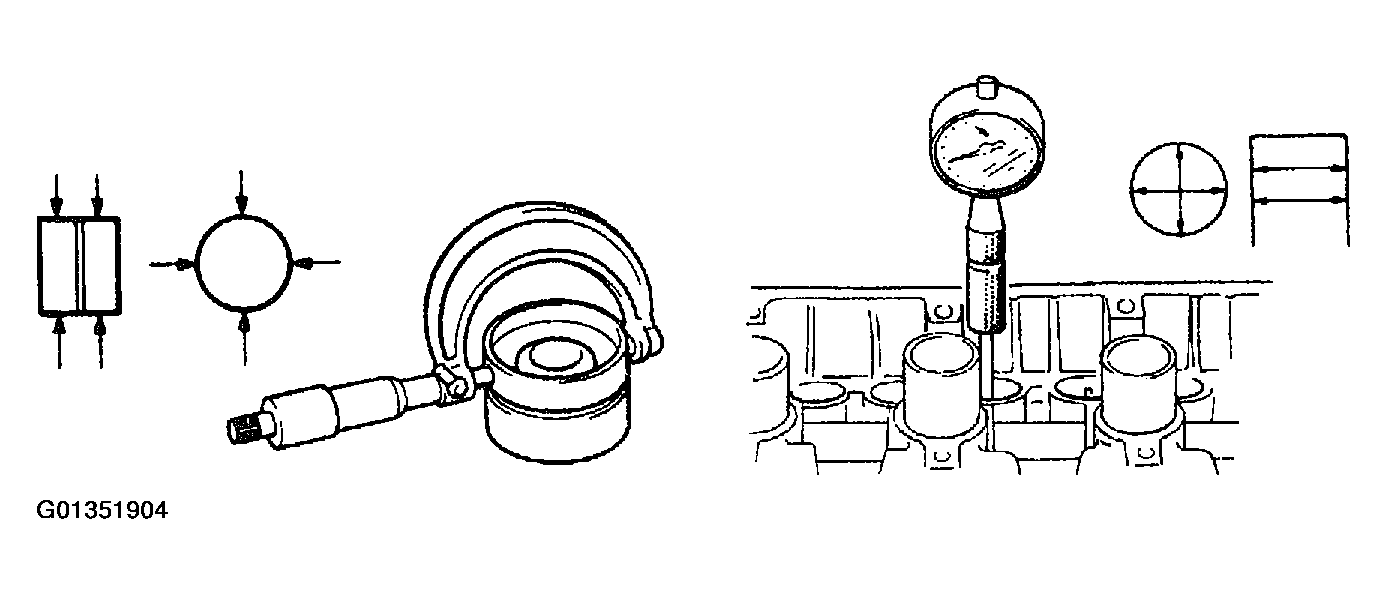

Fig 2: Measuring Cylinder Head To Adjuster Clearance

Courtesy of SUZUKI OF AMERICA CORP.
