Oil Relief Valve

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check oil relief valve for clogging and ball for being stuck.

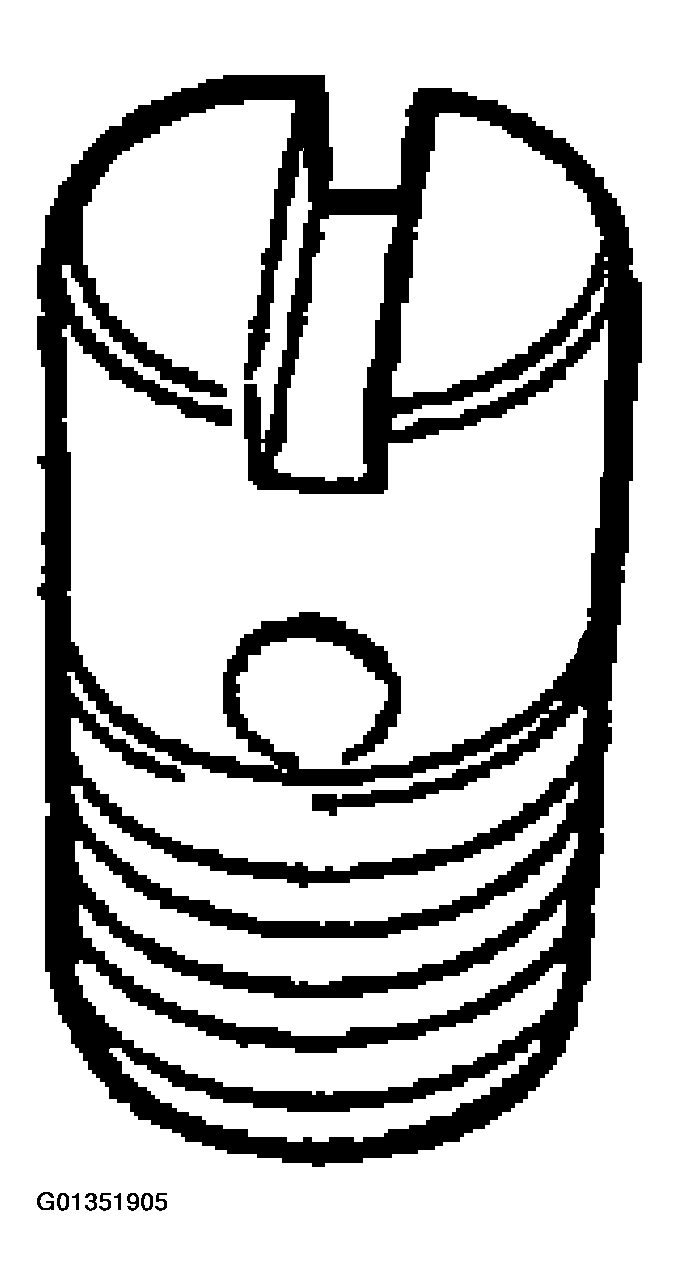

Fig 1: Identifying Oil Relief Valve
G01351905Courtesy of SUZUKI OF AMERICA CORP.
