Throttle Body Removal & Installation: Removal

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative cable at battery.
  2. Drain cooling system.
  3. Disconnect accelerator cable and/or A/T throttle cable from throttle body.
    Fig 1: Identifying Accelerator Cable & A/T Throttle Cable
    G01351820Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove air cleaner outlet hose.
  5. Disconnect electric coupler from TP sensor (1) and IAC valve (2).
  6. Disconnect coolant hoses (3) from throttle body.

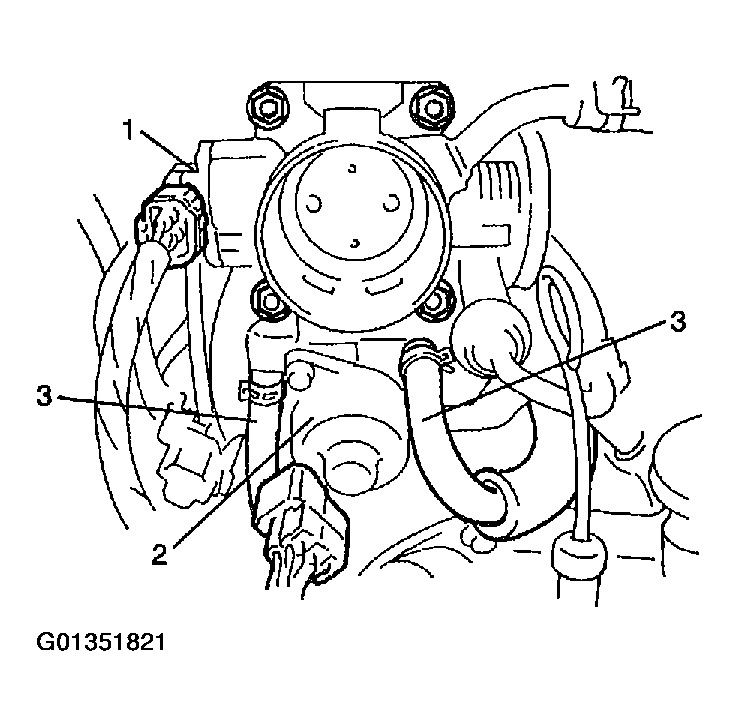

    Fig 2: Identifying Throttle Body Coolant Hoses
    G01351821Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove throttle body from intake manifold.
