Main Bearings, Crankshaft And Cylinder Block Components

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

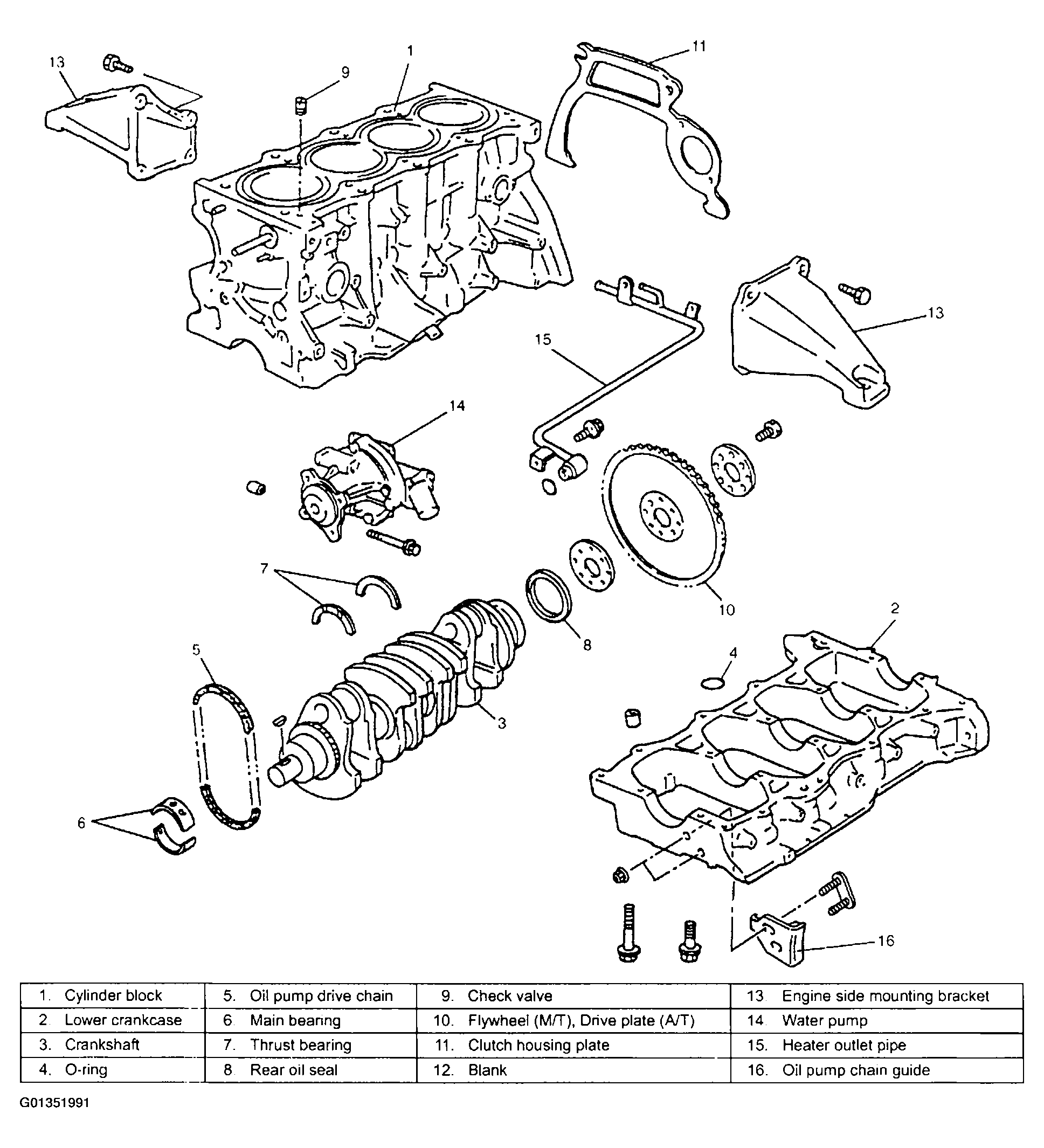

Fig 1: Exploded View Of Crankshaft & Cylinder Block Components
G01351991Courtesy of SUZUKI OF AMERICA CORP.
