Check Valve

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Inspect check valve for clogging and ball for being stuck.

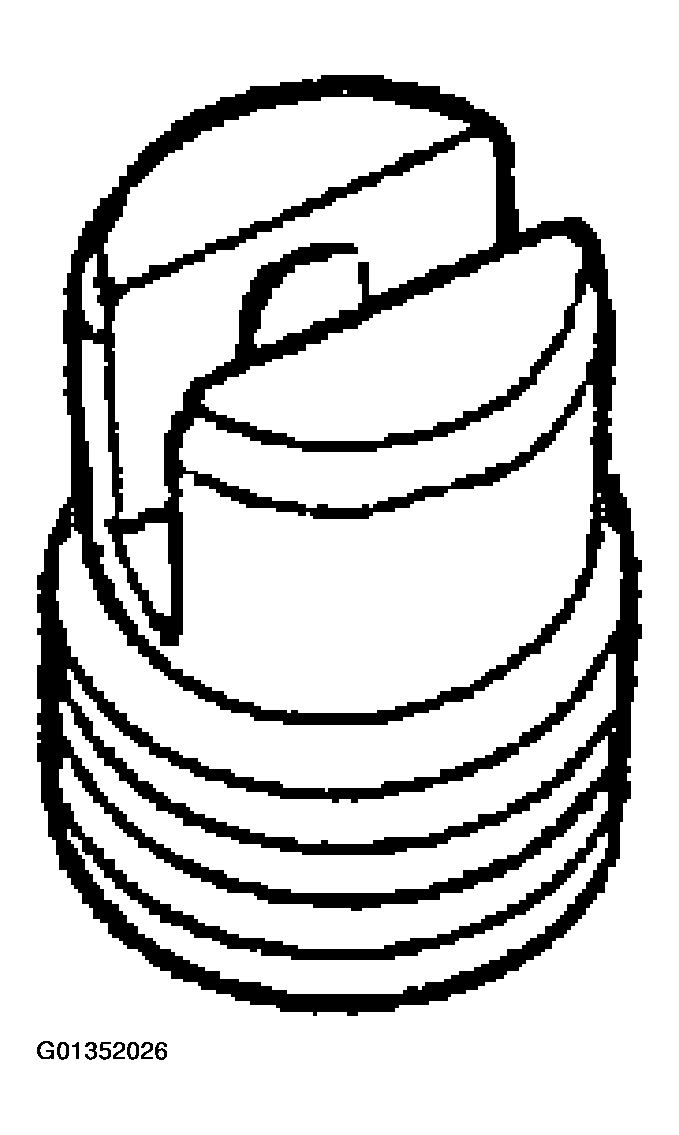

Fig 1: Identifying Check Valve
G01352026Courtesy of SUZUKI OF AMERICA CORP.
