Camshaft Runout
WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

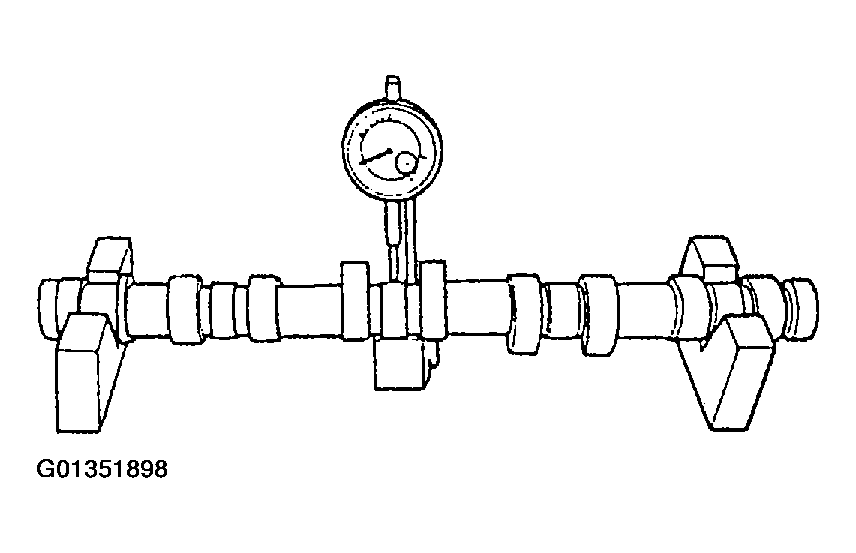

Set camshaft between two "V" blocks, and measure its runout by using a dial gauge.
If measured runout exceed below specified limit, replace camshaft.
Camshaft runout
- Limit:
0.10 mm (0.0039 in.)
Courtesy of SUZUKI OF AMERICA CORP.
