Idler Sprocket

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Check teeth and bushing of sprocket for wear or damage.

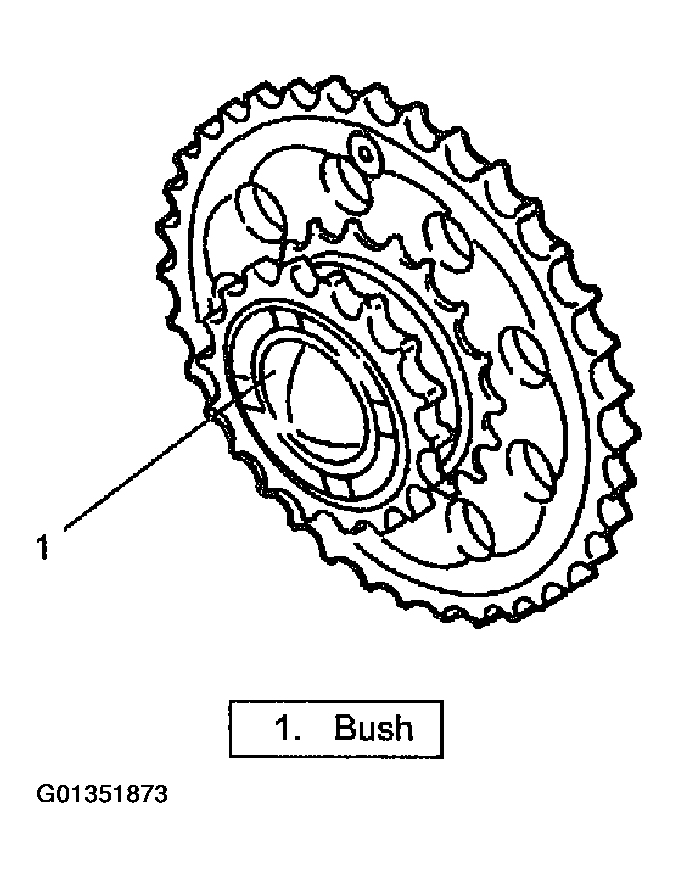

Fig 1: Checking Idler Sprocket

Courtesy of SUZUKI OF AMERICA CORP.
