Propeller Shaft Symptom Diagnosis

WARNING: This page is about a different car, the 2003 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

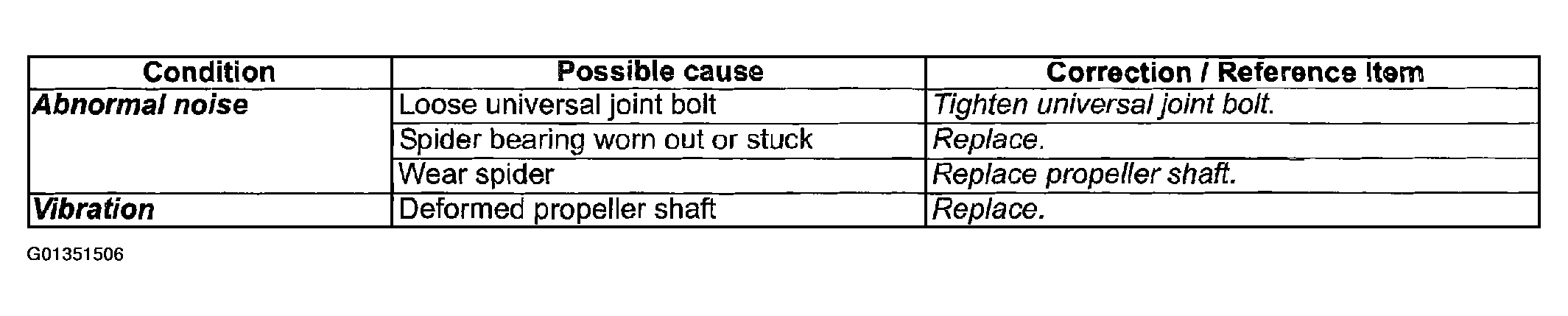

Fig 1: Propeller Shaft Symptom Diagnostic Chart
G01351506Courtesy of SUZUKI OF AMERICA CORP.
