Special Tool

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

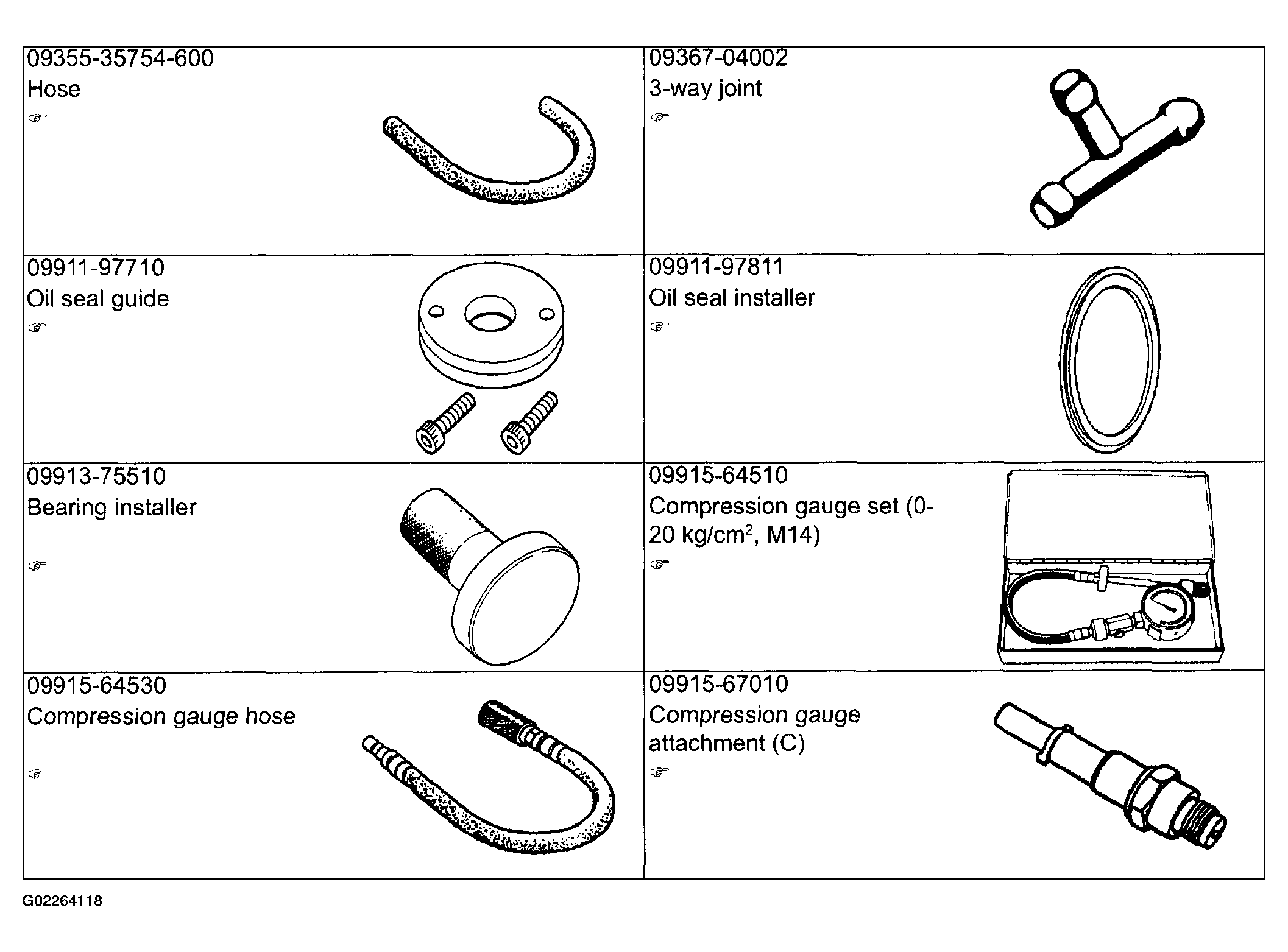

Fig 1: Special Tools (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

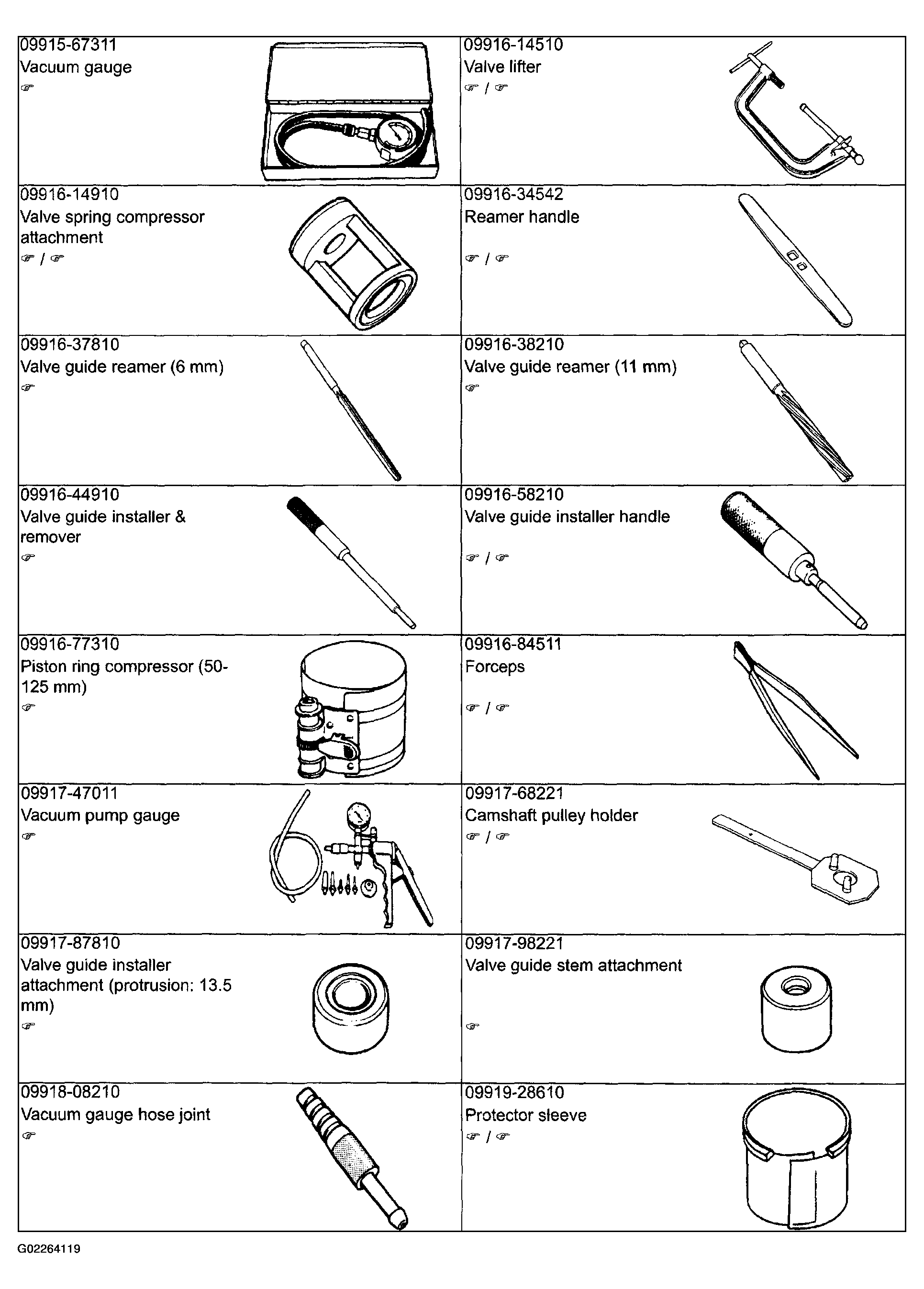

Fig 2: Special Tools (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

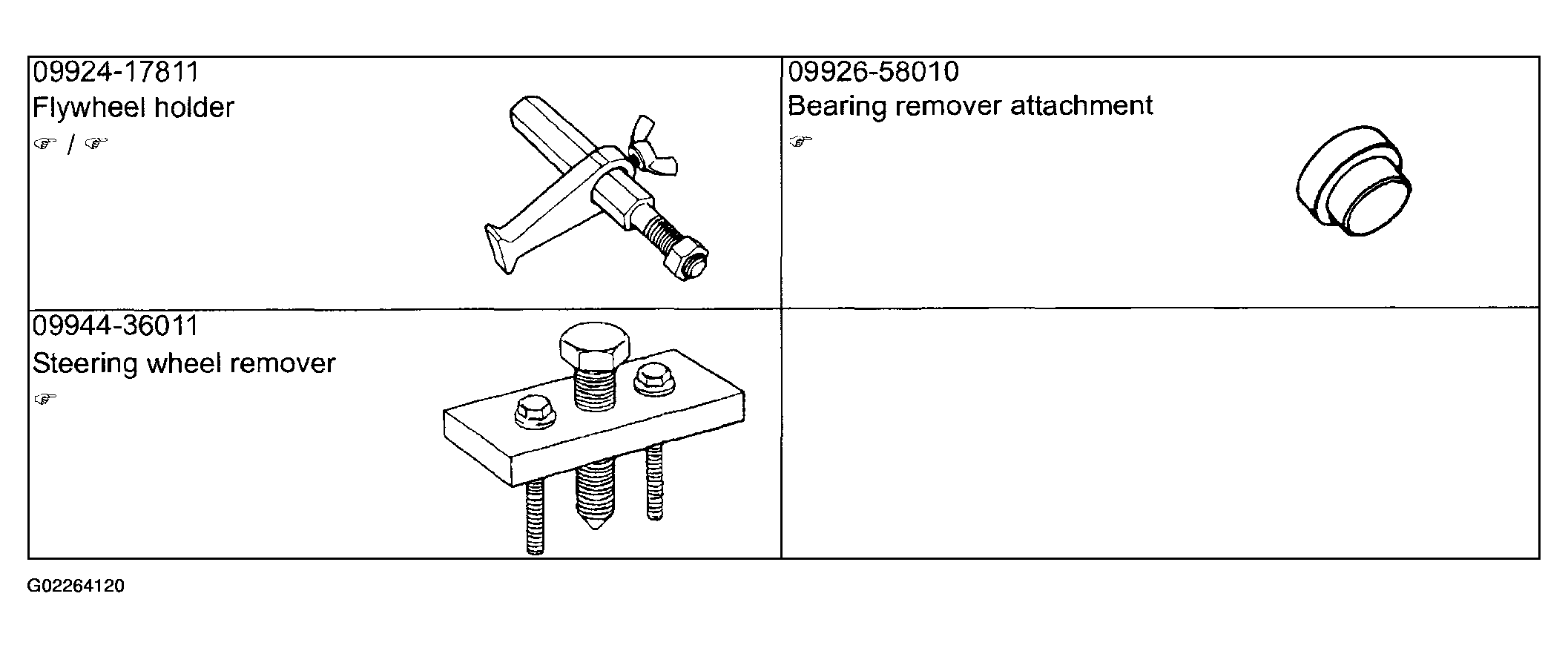

Fig 3: Special Tools (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
