Rear Oil Seal

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Carefully inspect oil seal for wear or damage. If lip portion is worn or damaged, replace oil seal.

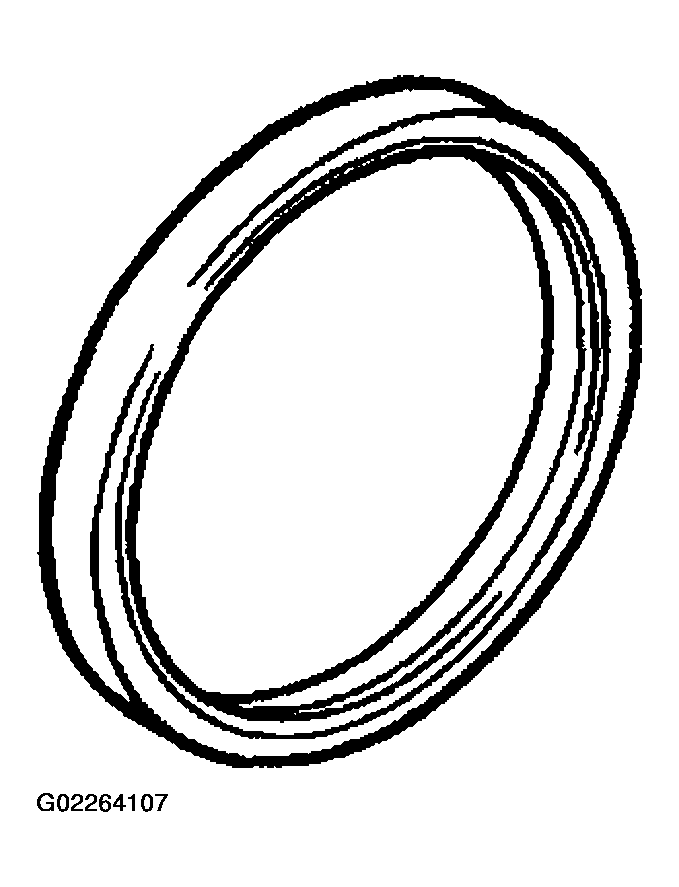

Fig 1: Identifying Rear Oil Seal
G02264107Courtesy of SUZUKI OF AMERICA CORP.
