Connecting rod bearing general information
WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

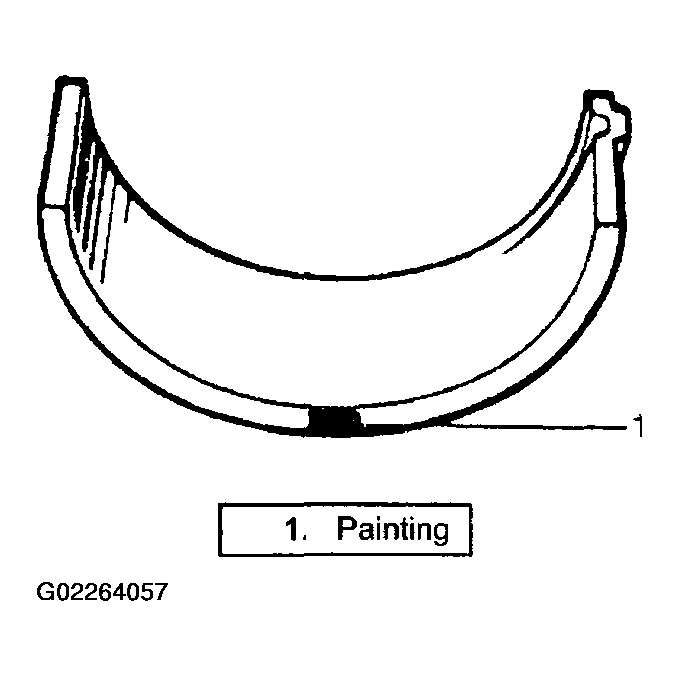

Service connecting rod bearings are available in standard size and 0.25 mm (0.0098 in.) undersize, and standard size bearing has 5 kinds of bearings differing in tolerance. For identification of undersize bearing, it is painted red at the position as indicated in figure, undersize bearing thickness is 1.605 - 1.615 mm (0.0632 - 0.0635 in.) at the center of it.
