Camshaft Runout
WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

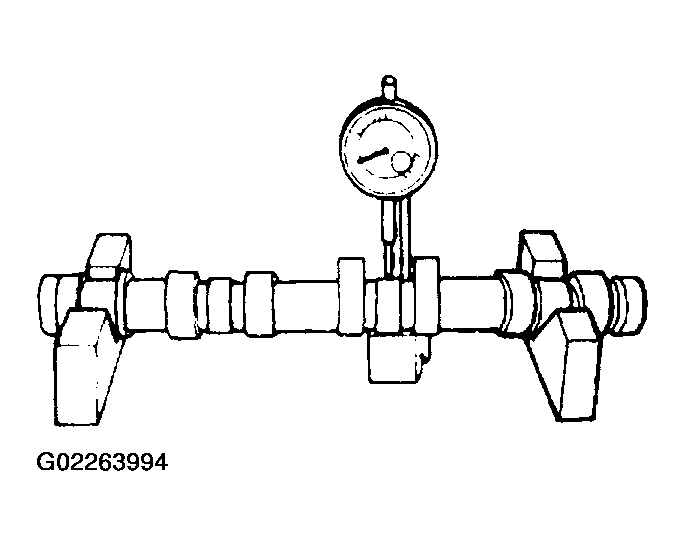

Set camshaft between two "V" blocks, and measure its runout by using a dial gauge.
If measured runout exceeds specified limit, replace camshaft.
Camshaft runout limit:
0.10 mm (0.004 in.)
Courtesy of SUZUKI OF AMERICA CORP.
