Cam Wear

WARNING: This page is about a different car, the 2004 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, measure cam height "a". If measured height is below its limit, replace camshaft.

Cam height specifications

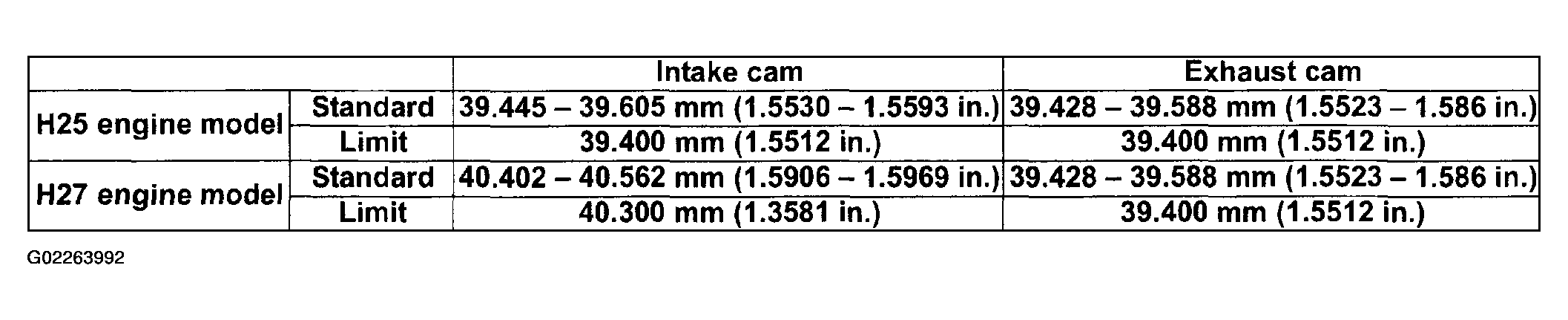

Fig 1: Cam Height Specifications Table

Courtesy of SUZUKI OF AMERICA CORP.

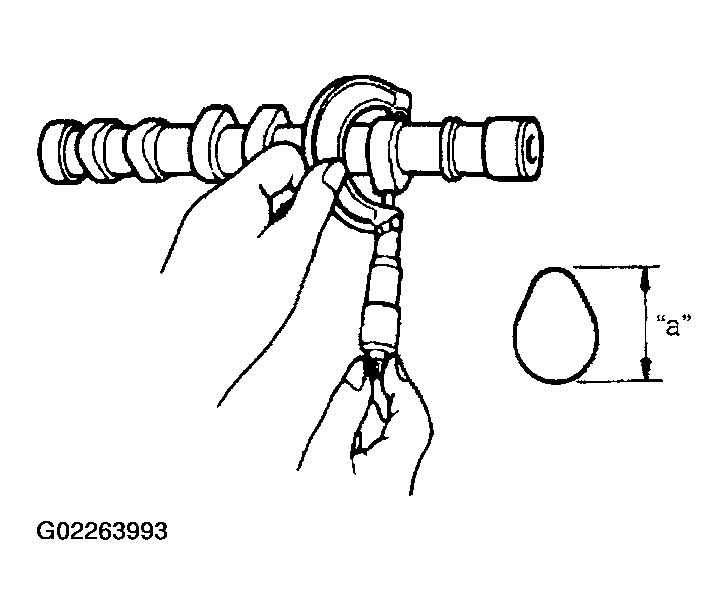

Fig 2: Using A Micrometer To Measure Cam Height

Courtesy of SUZUKI OF AMERICA CORP.
